Custom Fabric Expansion Joint Manufacturer for Industrial Duct Systems Industrial duct systems rarely operate under identical conditions. Duct dimensions, gas temperature, pressure, movement, particulate loading, chemical exposure and equipment layout can change substantially from one installation to another. For this reason, a custom fabric expansion joint should be engineered around the actual operating data rather than selected only by nominal duct size. BSTFLEX manufactures custom non metallic fabric expansion joints for industrial hot-air, exhaust, flue-gas and process-gas ducting. Round, rectangular, square and non-standard configurations can be produced according to customer drawings, existing joint dimensions and project operating conditions. Our manufacturing scope includes flexible belts, multilayer fabric constructions, insulated joints, replacement expansion joints and complete fabricated assemblies for OEM equipment, new installations, maintenance projects and plant shutdown replacements. Fabric Expansion Joints Built Around the Duct System A fabric expansion joint is not simply a piece of high-temperature fabric installed between two flanges. In an industrial duct system, the flexible section has to work with the surrounding equipment while accommodating the required movement and maintaining suitable sealing and thermal performance. The design may need to account for: Axial compression and extension Horizontal and vertical lateral displacement Angular movement Combined multidirectional movement Thermal cycling Equipment vibration Positive or negative duct pressure Hot gas exposure Moisture and chemical condensates Dust, fly ash and abrasive particles Installation misalignment BSTFLEX evaluates these conditions before determining the flexible material system, geometry, insulation arrangement and attachment construction. Custom Manufacturing Capabilities Industrial expansion joints frequently have dimensions and operating requirements that do not correspond to a standard catalogue item. BSTFLEX supports project-specific manufacturing for both new equipment and replacement applications. Manufacturing Requirement Available Customization Shape Round, rectangular, square and special geometry Dimensions Manufactured according to duct size or customer drawing Face-to-Face Length Customized according to installation space and movement Flexible Element Single-layer or engineered multilayer construction Materials Fiberglass, coated fiberglass, PTFE-based materials, silicone-coated fabrics, silica fabrics and insulation materials Movement Axial, lateral, angular or combined movement Attachment Belt-type, flanged or project-specific arrangement Internal Protection Liners, protective layers and insulation arrangements where required Production Type Prototype, replacement, OEM and production quantities Round Fabric Expansion Joints Round fabric expansion joints are commonly installed in cylindrical ducts, fan connections, exhaust systems and proce...

What Is a Tadpole Gasket and How Does It Work? A tadpole gasket is a flexible sealing profile built with two distinctive sections: a compressible round or oval bulb and a flat mounting tail. This construction gives the gasket its characteristic tadpole-like shape and allows it to solve sealing problems that conventional flat gasket tape or rope gasket cannot always handle effectively. Tadpole gaskets are commonly used around furnace doors, industrial ovens, boilers, kilns, access panels, thermal enclosures and other equipment where the sealing surface must accommodate heat, repeated opening and closing, dimensional movement or an uneven mating surface. The terms tadpole gasket, tadpole seal, tadpole tape and tadpole gasket tape are frequently used for products belonging to the same general sealing family. The exact construction, however, can vary considerably according to the cover material, core, bulb size, tail design and operating environment. BSTFLEX manufactures a broad range of high temperature tadpole gaskets and tadpole seals for industrial sealing applications, including custom constructions produced according to operating conditions, drawings or samples. Why Is It Called a Tadpole Gasket? The name comes from the cross-sectional shape of the seal. The enlarged portion resembles the body or head of a tadpole, while the narrow flat section extending from it resembles a tail. Although the geometry appears simple, the two sections perform completely different functions. Bulb: provides the compressible sealing surface. Tail: provides the mounting and retention area. Separating the compression function from the mounting function is one of the main reasons this gasket design is so useful on industrial doors and removable panels. How Does a Tadpole Gasket Work? The sealing action occurs primarily in the bulb. When an oven door, furnace door or access panel closes, the mating surface presses against the bulb. The internal core compresses and allows the outer cover to conform to the contact area. This controlled compression helps fill small surface irregularities and gaps between the door and frame. The flat tail remains attached to the equipment and keeps the gasket correctly positioned during operation. 1. The Bulb Compresses As the equipment door closes, pressure is applied to the bulb. The amount of compression depends on the gasket diameter, core construction, installation gap and closing force. A correctly selected bulb should compress sufficiently to create continuous contact without being crushed beyond its intended working range. 2. The Core Supports the Seal Inside the bulb is a core that determines much of the gasket's compression behavior. Depending on the required performance, the core may be manufactured from fiberglass rope, silica fiber, ceramic fiber, stainless steel wire mesh, Inconel wire mesh or another engineered material. A soft fiber core may be selected when flexibility and conformity are important. A metal mesh core may be...

Fabric Expansion Joints for Power Plant Flue Gas Systems Power plant flue gas ductwork operates under a combination of high temperature, thermal movement, vibration, pressure fluctuations, corrosion and particulate loading. Large duct sections can expand, contract and shift during startup, normal operation and shutdown. A properly engineered fabric expansion joint provides a flexible connection that absorbs this movement while maintaining the required separation and sealing between adjoining duct sections. Unlike a simple flexible connector, a power plant expansion joint must be designed around the actual flue gas conditions. Temperature, pressure, gas composition, fly ash, movement, duct dimensions and liner configuration all influence the construction of the joint. BSTFLEX manufactures custom non metallic fabric expansion joints for large industrial duct systems, including boiler, flue gas, air pollution control and exhaust applications. Power Plant Flue Gas Expansion Joint Design Inputs Parameter Why It Matters Operating Temperature Determines the thermal protection and flexible material system Maximum Temperature Accounts for startup, upset and transient conditions Pressure Determines belt loading and movement behavior Flue Gas Composition Influences chemical compatibility and sealing material selection Moisture Important for condensation and acid-dew-point conditions Fly Ash and Dust May require an internal liner or abrasion protection Axial Movement Determines compression and extension capability Lateral Movement Determines required flexible geometry Duct Dimensions Influences frame, corner and belt construction Why Power Plant Ducts Need Expansion Joints Flue gas ducts are connected to equipment that operates through significant temperature changes. A duct that is several meters long can experience measurable dimensional growth when heated. The problem is not limited to the duct itself. Thermal movement can also occur between: Boiler outlets Air heaters Electrostatic precipitators Bag filters Flue gas desulfurization equipment Fans Scrubbers Stacks These components do not necessarily expand in exactly the same direction or at the same rate. A flexible joint provides a controlled location where relative movement can occur without forcing the entire duct system to absorb the displacement as mechanical stress. Where Are Fabric Expansion Joints Used in Power Plants? A power plant fabric expansion joint can be installed at multiple locations throughout a flue gas handling system. Typical locations include: Boiler flue gas ducts Economizer outlet ducts Air preheater connections Induced draft fan inlet and outlet ducts Electrostatic precipitator connections Baghouse ductwork Flue gas desulfurization systems Wet scrubber ductwork Stack inlet ducts Gas recirculation ducts The operating conditions can vary significantly between these locations, so one material construction should not automatically be applied throughout the plant. Boiler Duct Expansi...

The performance of a fabric expansion joint depends heavily on its material construction. PTFE, silicone-coated fiberglass, woven fiberglass and silica fabric can all be used in non-metallic expansion joint systems, but they do not perform the same job. PTFE is typically selected where gas sealing and chemical resistance are critical. Silicone-coated fiberglass provides flexibility, weather resistance and useful sealing performance. Fiberglass supplies reinforcement and thermal stability. Silica fabric is generally reserved for the hottest areas of the construction, where direct thermal exposure exceeds the practical range of conventional fiberglass systems. In many industrial applications, the correct solution is therefore not PTFE versus silicone versus fiberglass versus silica. It is a carefully engineered combination of several materials, with each layer positioned where its properties are most useful. BSTFLEX manufactures custom Non Metallic Fabric Expansion Joints using application-specific material combinations for hot-air, exhaust, flue-gas and industrial duct systems. Material Selection in One Minute Material Primary Strength Typical Role in Expansion Joint PTFE-Coated Fiberglass Chemical resistance and gas sealing Gas barrier or external flexible belt Silicone-Coated Fiberglass Flexibility, weatherability and heat resistance Outer cover or flexible sealing layer Fiberglass Fabric Mechanical reinforcement and thermal stability Reinforcement or supporting textile layer Silica Fabric High-temperature thermal resistance Hot-face protection or thermal barrier Why Fabric Expansion Joint Material Selection Is More Complicated Than It Looks A common purchasing question is: “What is the best material for a fabric expansion joint?” There is no universal answer because an expansion joint must perform several different functions simultaneously. The flexible element may need to: Contain process gas Absorb axial and lateral movement Remain flexible after repeated thermal cycles Resist chemical attack Withstand high temperature Protect against rain and outdoor exposure Resist vibration Provide mechanical reinforcement Survive particulate abrasion No single textile is ideal at every one of these tasks. This is why industrial fabric expansion joint materials are usually selected according to function rather than simply according to the highest temperature rating. Think in Functions, Not Just Material Names A practical way to understand expansion joint construction is to separate the material system into functional zones. From the process side outward, a multi-layer joint may include: Process Gas → Flow Protection → Hot-Face Layer → Insulation → Reinforcement → Gas Seal → Outer Protection The actual order and number of layers varies by application, but this model explains why several different technical fabrics can appear in one joint. For example, silica may protect the hottest side, fiberglass may provide structural reinforcement, insulation may reduce...

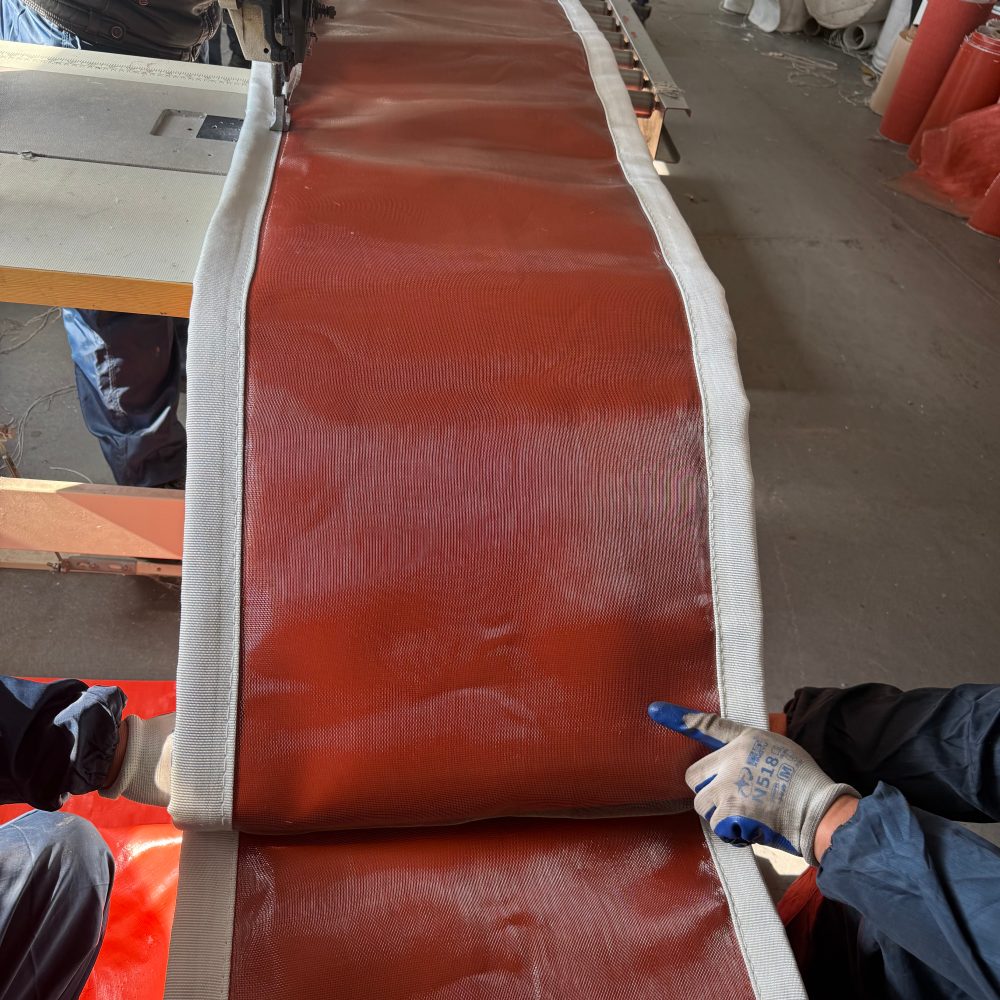

High-temperature flue gas ducting creates one of the most demanding operating environments for a fabric expansion joint. The joint may need to handle several problems at the same time: elevated gas temperature, thermal growth, negative pressure, fly ash or process dust, corrosive gas components, vibration and large multidirectional duct movement. For this reason, a high temperature fabric expansion joint should not be selected simply by choosing a fabric with the highest published temperature rating. Reliable performance depends on the complete joint architecture, including the flexible belt, gas-sealing layer, thermal insulation, hot-face protection, internal liner and the geometry available for movement. BSTFLEX manufactures custom non metallic fabric expansion joints for industrial hot-air, exhaust and flue-gas duct systems. Key design principle: In a hot flue-gas system, the flexible sealing membrane does not necessarily need to operate at the full gas temperature. A properly designed insulation and hot-face system can create a controlled temperature gradient through the expansion joint. Why Flue Gas Ducts Need Expansion Joints Industrial flue ducts can change dimension significantly between cold shutdown and full operating temperature. A long steel duct expands as its temperature rises. If that growth is restrained, additional loads can be transferred to duct walls, support structures, fans, boilers, furnaces and pollution-control equipment. A flue gas expansion joint provides a flexible section where this thermal movement can occur in a controlled manner. Typical sources of movement include: Thermal growth of long duct sections Boiler or furnace expansion Fan and blower vibration Structural movement Equipment misalignment Startup and shutdown cycles Lateral movement between connected components Fabric joints are particularly useful in these systems because they can accommodate axial, lateral and angular movement with comparatively low spring forces. Industry manufacturers commonly use them in hot gaseous, low-pressure duct service. The Challenge Is Not Temperature Alone A high-temperature flue-gas application is usually a combination of several operating stresses. Operating Condition Potential Effect on the Expansion Joint High Gas Temperature Thermal degradation of sealing and reinforcement materials Fly Ash or Dust Abrasion and accumulation inside the joint cavity Negative Pressure Flexible material may be drawn toward the gas stream High Gas Velocity Flutter, turbulence and local mechanical wear Acidic Gas Components Chemical attack on incompatible materials Condensation Potentially severe corrosion or chemical exposure Thermal Cycling Repeated flexing and dimensional change Large Duct Movement Strain on the flexible belt and attachment system This is why two flue ducts operating at the same temperature may require completely different expansion joint constructions. How a High Temperature Fabric Expansion Joint Is Built Many severe-servi...
