Does the gasket include adhesive backing?

Yes, the gasket features a high temperature peel and stick adhesive backing for easy installation.

How can I request a quote?

You can request pricing or technical support at https://www.pkfiresleeve.com/contact_d2.

adhesive backed wire mesh fiberglass gasket for BBQ grill

Adhesive Bakced Wire Mesh Fiberglass Gasket Replacement

High temperature adhesive backed wire mesh fiberglass gasket for BBQ grills and smokers. Reinforced fiberglass braid with stainless steel mesh core provides superior heat resistance, smoke sealing, and long service life. Ideal replacement gasket for Kamado grills and ceramic smokers.

order(moq):
1
Payment:
EXW, FOB, CIF, DDP, FCA, etc
product origin:
China
shipping port:
Shanghai, Ningbo
Lead Time:
5-10 days

inquiry now

Hot Products

Product Detail

Adhesive Backed Wire Mesh Fiberglass Gasket | High Temperature BBQ Grill Gasket Replacement

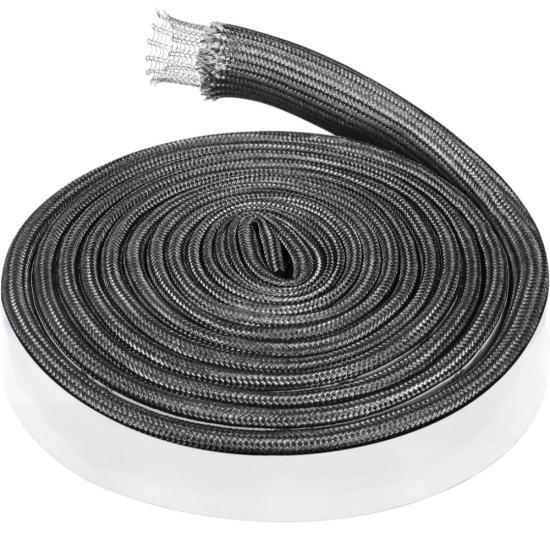

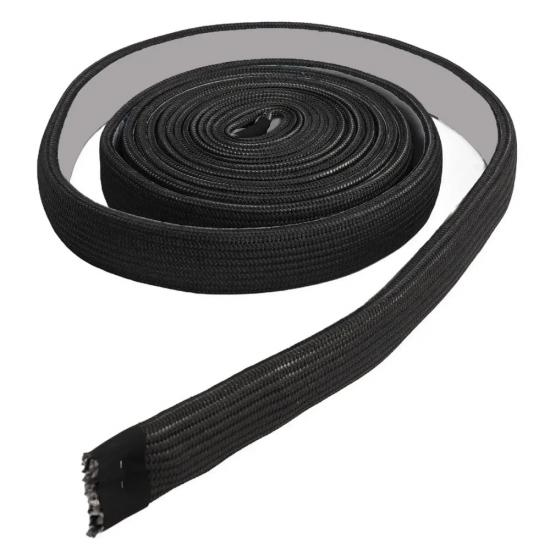

Adhesive Backed Wire Mesh Fiberglass Gasket

High Temperature BBQ Grill & Smoker Gasket Replacement

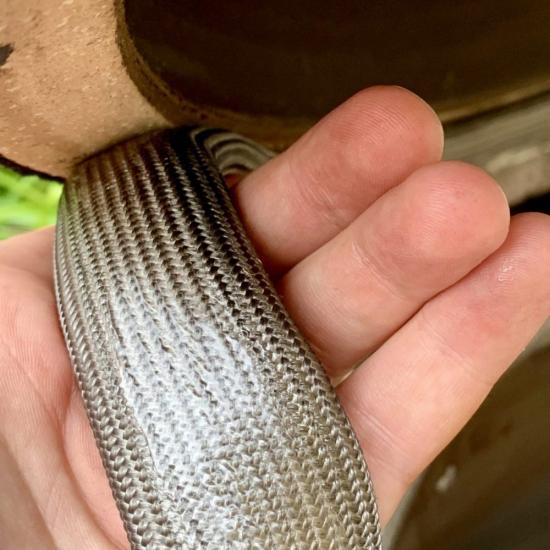

The Adhesive Backed Wire Mesh Fiberglass Gasket is a high-temperature sealing solution designed for BBQ grills, ceramic smokers, and kamado cookers. This gasket features a braided fiberglass outer sleeve combined with an internal knitted stainless steel wire mesh core, providing excellent strength, durability, and thermal insulation.

Compared with traditional felt or wool grill gaskets, this reinforced fiberglass gasket offers superior heat resistance and long service life. The integrated high-temperature adhesive backing allows quick installation without additional glue.

Key Features

High temperature resistant fiberglass construction
Internal knitted stainless steel wire mesh reinforcement
Excellent smoke sealing performance
Durable and long service life
Easy peel and stick installation

Product Structure

Layer	Material	Function
Outer Layer	Braided Fiberglass	Heat insulation and flame resistance
Core	Knitted Stainless Steel Wire Mesh	Structural reinforcement and shock absorption
Backing	High Temperature Adhesive	Fast installation and secure bonding

Technical Specifications

Parameter	Specification
Product Name	Adhesive Backed Wire Mesh Fiberglass Gasket
Outer Material	Fiberglass Braided Sleeve
Core Material	Knitted Stainless Steel Wire Mesh
Continuous Temperature	550°C (1022°F)
Peak Temperature	650°C (1202°F)
Width	10 mm – 40 mm
Thickness	3 mm – 10 mm
Length	Custom Length Available
Color	White / Black

Typical Applications

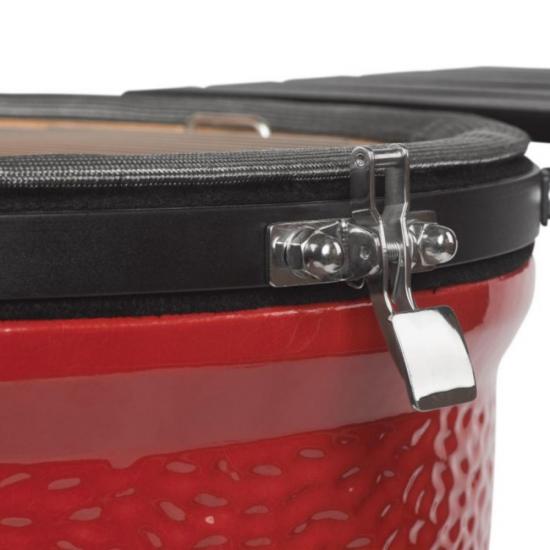

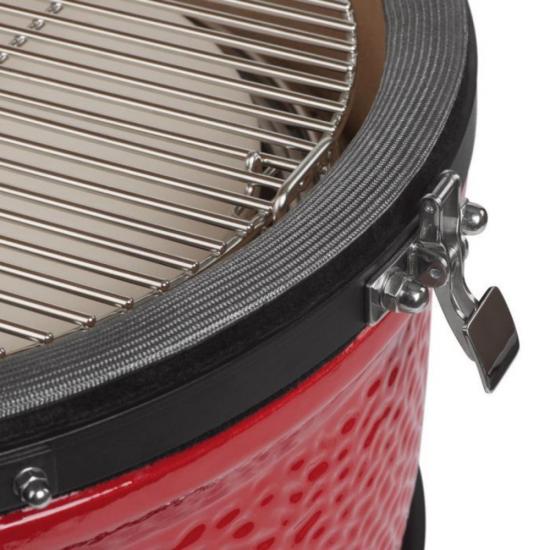

Kamado ceramic grills
BBQ smokers
Charcoal grills
Kamado Joe gasket replacement
Big Green Egg gasket replacement
Outdoor ceramic cookers

Installation Guide

Remove the old gasket and adhesive residue
Clean the surface thoroughly
Peel off the adhesive backing
Apply the gasket along the rim of the grill
Press firmly to ensure adhesion
Allow adhesive to cure before use

FAQ

What is a wire mesh fiberglass gasket used for?
It is used to seal BBQ grills and smokers, preventing smoke leakage and improving temperature control.

What temperature can this gasket withstand?
The fiberglass gasket can withstand continuous temperatures up to 550°C and peak temperatures up to 650°C.

Is this gasket suitable for Kamado grills?
Yes, it is compatible with Kamado Joe, Big Green Egg and other ceramic grills.

Can the gasket be cut to size?
Yes, the gasket tape can be easily cut to fit different grill sizes.

Request a Quote

If you need pricing, samples, or custom specifications for the adhesive backed fiberglass gasket, please contact our technical sales team.
