BSTFLEX Vermiculite Coated Fiberglass Welding Blanket Roll is a mineral-treated fiberglass fabric supplied in continuous rolls for welding blanket manufacturers, industrial fabricators, converters and distributors. The vermiculite coating improves the heat and abrasion performance of the fiberglass surface, making the material suitable for welding blankets, curtains, spark barriers and demanding hot-work protection. Available constructions range from approximately 0.8 mm to 3.0 mm thickness, with multiple fabric weights and custom fabrication options.
order(moq):
1BSTFLEX Vermiculite Coated Fiberglass Welding Blanket Roll is a high-temperature fiberglass fabric with a mineral-based vermiculite surface treatment, supplied in continuous roll form for welding blanket manufacturers, industrial textile converters, distributors and OEM buyers.
The vermiculite coating improves the ability of the fiberglass surface to tolerate severe heat, sparks, welding spatter and abrasion compared with untreated fiberglass fabric.
This construction is particularly useful where general-purpose uncoated fiberglass is not sufficient, but buyers still require a flexible material that can be cut, sewn and fabricated into welding blankets, welding curtains and custom hot-work protection products.
BSTFLEX supplies several fabric weights and thicknesses, with roll material, cut lengths, cut panels and finished welding blanket fabrication available according to project requirements.

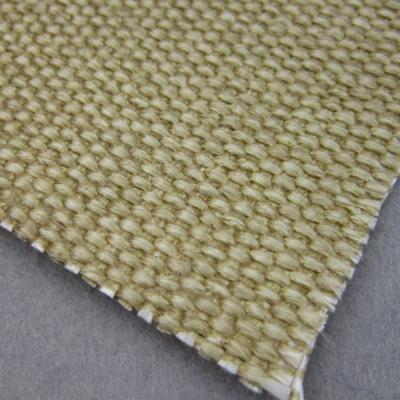

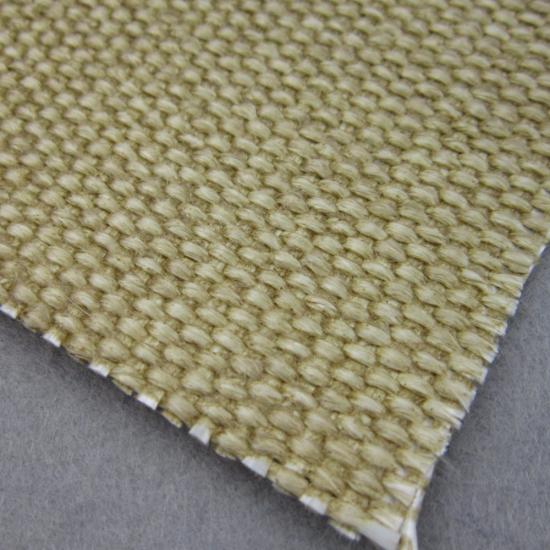

A vermiculite coated fiberglass welding blanket roll consists of woven fiberglass fabric treated with a mineral-based vermiculite coating.
Vermiculite forms a dry mineral surface over the fiberglass textile. This treatment helps protect the fiberglass yarn from direct heat exposure and surface abrasion while maintaining sufficient flexibility for cutting, sewing and industrial fabrication.

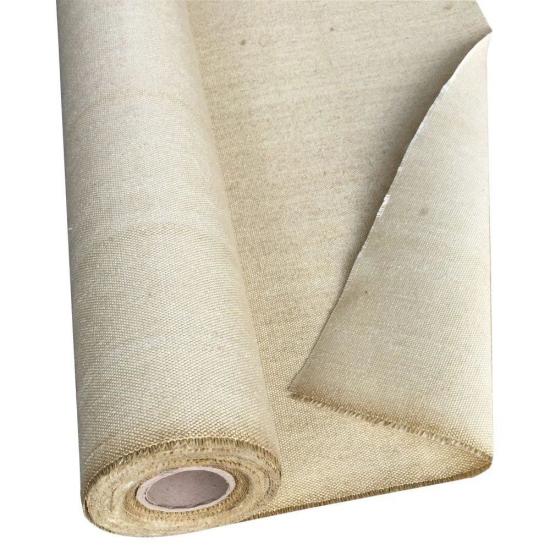

The material is supplied as continuous roll goods rather than as a finished blanket with hems, stitching and grommets.
This makes it suitable for buyers that manufacture their own welding protection products or distribute high-temperature fabrics to local fabricators.
Uncoated fiberglass can provide economical protection for many routine welding operations. More demanding conditions, however, can expose the textile surface to repeated hot particles, abrasion and greater thermal loading.
Vermiculite treatment is used to improve the surface performance of the fiberglass fabric.
Depending on the exact construction and operating conditions, the treatment can provide:
Material selection should still be based on the actual welding or cutting exposure rather than assuming that every vermiculite coated fabric is suitable for every heavy-duty application.
| Property | BSTFLEX Specification |
|---|---|
| Base Material | E-glass woven fiberglass fabric |
| Surface Treatment | Vermiculite mineral coating |
| Typical Working Temperature | Up to approximately 815°C / 1500°F depending on exposure and operating conditions |
| Available Thickness | Approx. 0.8 mm to 3.0 mm |
| Typical Width | Approx. 100 cm / 40 in |
| Typical Roll Length | Approx. 50 m / 54.7 yd |
| Typical Color | Gold yellow / natural vermiculite finish |
| Supply Form | Full roll, cut length, cut panel or finished welding blanket |
| Customization | Thickness, roll dimensions, cutting, sewing and finished fabrication according to project requirements |
The final specification should always be confirmed against the exact fabric construction ordered.
BSTFLEX offers several vermiculite coated fiberglass constructions so buyers can select the material according to thermal exposure, durability, flexibility and finished-product requirements.
| Fabric Weight | Nominal Thickness | Typical Width | Typical Roll Length |
|---|---|---|---|
| Approx. 615 g/m² | Approx. 0.8 mm | 100 cm / 40 in | 50 m / 54.7 yd |
| Approx. 816 g/m² | Approx. 1.0 mm | 100 cm / 40 in | 50 m / 54.7 yd |
| Approx. 1020 g/m² | Approx. 1.5 mm | 100 cm / 40 in | 50 m / 54.7 yd |
| Approx. 1380 g/m² | Approx. 2.0 mm | 100 cm / 40 in | 50 m / 54.7 yd |
| Approx. 1680 g/m² | Approx. 2.5 mm | 100 cm / 40 in | 50 m / 54.7 yd |
| Approx. 1900 g/m² | Approx. 3.0 mm | 100 cm / 40 in | 50 m / 54.7 yd |
These constructions should not be treated as interchangeable simply because they use the same vermiculite coating.
Fabric weight and thickness influence handling, flexibility, thermal mass, abrasion performance and finished blanket construction.
The thickest welding fabric is not automatically the best choice.
Different thicknesses serve different fabrication and protection requirements.
A buyer should consider:
A thinner construction can be easier to handle and fabricate, while a heavier construction may be preferred where greater physical durability and thermal mass are required.
The application should determine the material rather than thickness alone.
Vermiculite coated fiberglass is commonly selected where welding protection requires more than a basic untreated fiberglass surface.
The mineral-treated surface helps protect the textile during exposure to welding sparks and spatter.
Typical applications include:
The actual material construction should be selected according to the severity and duration of exposure.
Hot cutting slag creates a different exposure from scattered welding sparks.
Slag particles can be larger, hotter and remain in contact with the blanket surface for longer periods.
For this reason, a fabric that performs well as a vertical spark barrier should not automatically be assumed to provide the same protection when positioned horizontally underneath a cutting operation.
For applications involving significant hot slag, provide details about:
This information is more useful than simply asking for a "heavy duty welding blanket roll."
Vermiculite coated fiberglass is frequently considered for heavier welding protection because the mineral surface treatment improves thermal and abrasion performance compared with untreated fiberglass.
However, the term heavy duty welding blanket roll should not be used as a complete technical specification.
A proper heavy-duty specification should define:
This allows the material to be selected for the actual working conditions instead of relying on a generic duty label.
| Selection Factor | Heat-Cleaned Fiberglass | Vermiculite Coated Fiberglass |
|---|---|---|
| Surface | Uncoated fiberglass | Mineral-treated fiberglass |
| General Spark Protection | Suitable | Suitable |
| Surface Abrasion Resistance | Basic woven textile surface | Improved mineral-treated surface |
| More Severe Thermal Exposure | General-purpose applications | Better candidate for demanding conditions |
| Typical Purchasing Priority | Economical general welding protection | Greater thermal and surface durability |
For economical general welding protection, compare the Heat Cleaned Fiberglass Welding Blanket Roll.
Acrylic and vermiculite coatings solve different problems.
Acrylic coating is mainly selected to improve handling, surface stability and abrasion resistance in general welding environments.
Vermiculite is a mineral treatment intended for applications where higher thermal exposure, sparks and hot-work conditions are more important.
| Selection Factor | Acrylic Coated Fiberglass | Vermiculite Coated Fiberglass |
|---|---|---|
| Primary Function | Surface stability and handling | Thermal and abrasion protection |
| General Welding | Suitable | Suitable |
| Higher Heat Exposure | Application dependent | Preferred candidate where mineral treatment is appropriate |
| Surface Type | Polymer coating | Mineral coating |
| Typical Buyer Priority | Economical coated welding fabric | More demanding hot-work protection |
For general coated fiberglass applications, see the Acrylic Coated Fiberglass Welding Blanket Roll.
Silicone and vermiculite coatings also have different functions.
Silicone coated fiberglass is commonly selected where moisture resistance, surface durability, repeated handling and workshop contamination are important.
Vermiculite coated fiberglass is selected more specifically for its mineral-treated surface and performance in high-temperature welding and hot-work environments.
If environmental resistance and repeated handling are the main requirements, silicone coated fiberglass may be preferable.
If direct thermal exposure and hot-particle resistance are the primary concerns, vermiculite coated fiberglass should be evaluated.
Both vermiculite coated fiberglass and silica fabric are used for demanding welding protection, but they reach that goal through different material systems.
Vermiculite coated fiberglass uses a fiberglass substrate with a mineral surface treatment.
Silica fabric uses a higher-silica textile base and is generally selected where greater sustained temperature capability is required.
The purchasing decision should consider:
Where continuous high-temperature capability is the dominant requirement, compare BSTFLEX silica welding fabric options in the Welding Blanket Rolls & Roll Goods range.
Continuous roll goods allow fabricators to manufacture different blanket sizes from the same material inventory.
Vermiculite coated fiberglass roll can be converted into:
Finished dimensions can be selected according to the customer's project rather than being limited to standard blanket sizes.
The standard material width is approximately 100 cm / 40 in.
This means that larger finished welding blankets may require multiple fabric panels to be joined during fabrication.
Buyers should distinguish between:
A finished 6 ft, 8 ft or 10 ft wide welding blanket should not automatically be interpreted as being produced from one seamless width of raw fabric.
For large finished products, seam location and fabrication layout should be defined during product design.
Converters should calculate material consumption using the actual roll width and finished cutting plan.
Useful factors include:
Providing finished drawings can help determine approximate material consumption for repeat OEM production.
| Supply Format | Description | Typical Buyer |
|---|---|---|
| Full Roll | Continuous vermiculite coated fiberglass fabric | Converters, manufacturers and distributors |
| Cut-to-Length | Roll material supplied in agreed continuous lengths | Fabricators requiring controlled production quantities |
| Cut Panels | Fabric cut to specified dimensions | Customers completing local sewing and finishing |
| Finished Welding Blanket | Fabricated blanket with sewing and optional attachment features | Industrial users and finished-product distributors |
Standard vermiculite welding fabric rolls are raw fabrication material.
Unless specifically ordered, roll goods do not normally include:
These features can be added when BSTFLEX converts the material into finished welding blankets.
Distributors can use vermiculite coated fiberglass roll goods to serve local fabricators while offering finished welding blankets to customers that do not perform their own conversion.
A distributor program can therefore include:
This allows one material family to serve both raw-material buyers and finished-product users.
BSTFLEX supports OEM, distributor and industrial purchasing requirements.
Available customization can include:
The available combination should be confirmed against production capability before placing an order.
Customers that require the same material for applications beyond welding protection can also review the BSTFLEX Vermiculite Coated Fiberglass Fabric.
The base fabric is also used for furnace curtains, industrial heat shields, pipe insulation, expansion joints and removable insulation fabrication.
The welding blanket roll page is specifically intended for customers purchasing the material for welding and hot-work protection applications.
| RFQ Item | Information to Provide |
|---|---|
| Application | Welding, cutting, grinding, curtain, blanket or other hot work |
| Exposure | Sparks, spatter, slag, radiant heat or combination |
| Installation | Horizontal, vertical or equipment covering |
| Fabric Weight | Required g/m² if already specified |
| Thickness | 0.8, 1.0, 1.5, 2.0, 2.5, 3.0 mm or application requirement |
| Roll Width | Required usable width |
| Roll Length | Required length per roll |
| Quantity | Number of rolls or total fabric requirement |
| Supply Format | Full roll, cut lengths, panels or finished blankets |
| OEM Requirements | Labeling, packaging or repeat-order requirements |
It is woven fiberglass fabric with a mineral-based vermiculite surface treatment supplied in continuous rolls for fabrication into welding blankets, curtains, hot-work barriers and other protective products.
BSTFLEX Vermiculite Coated Fiberglass Fabric is designed for working temperatures up to approximately 815°C / 1500°F depending on exposure time, installation and operating conditions.
Current BSTFLEX constructions include approximately 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm and 3.0 mm.
A typical existing format is approximately 100 cm / 40 in wide and 50 m / 54.7 yd long. Other requirements can be evaluated according to production capability.
It is an important material to evaluate for demanding welding protection because the mineral coating improves thermal and abrasion performance. Final suitability still depends on the welding or cutting process, particle exposure, installation orientation and required protection level.
No. Vermiculite is a mineral surface treatment, while silicone coated fiberglass uses an elastomeric silicone coating. They provide different combinations of thermal, handling and environmental properties.
Yes. Full-roll supply is intended for converters, welding blanket manufacturers, distributors and OEM buyers.
Yes. Cut-to-length material and cut panels can be discussed according to the required fabric construction and order quantity.
Yes. The same material can be converted into finished welding blankets with custom dimensions, sewn edges, reinforcement and optional grommet configurations.
No, not as standard roll goods. Grommets and other attachment features belong to the finished welding blanket fabrication specification.
Send BSTFLEX your required thickness, fabric weight, roll width, roll length, quantity and intended welding or cutting application.
If the exact construction has not yet been selected, provide information about the process, sparks, spatter or slag exposure, operating temperature, horizontal or vertical installation and the surface or equipment that must be protected.
For repeat production, finished-product drawings can help determine material quantity, panel layout and fabrication requirements.
BSTFLEX can supply full rolls, cut-to-length material, cut panels and fabricated welding blankets for distributors, converters and OEM purchasing programs.
View Welding Blanket Rolls & Roll Goods, compare the Heat Cleaned Fiberglass Welding Blanket Roll and Acrylic Coated Fiberglass Welding Blanket Roll, or browse the complete Welding & Soldering Area Protection range.
