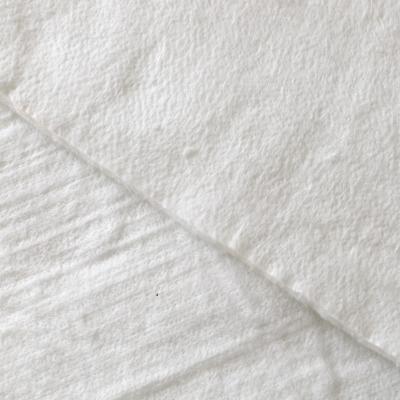

Thermal Insulation Material Fiberglass Needle Mat

Binder-Free E-Glass Insulation for Fabricated Assemblies

BSTFLEX fiberglass needle mat is a nonwoven insulation material made by mechanically entangling E-glass fibers. Also known as glass fiber needle mat or fiberglass needle felt, it provides a flexible core for industrial thermal insulation. The plain mat has no added bonding resin, foil facing or self-adhesive backing.

Choose this material when your production process needs an insulation layer that can be cut and fitted inside a jacket, equipment panel or protective enclosure. For other fiber types and constructions, use our high-temperature insulation material selector.

Available Specification Range

These ranges are not a guarantee that every thickness, density, width and length combination is available. Confirm the required combination, dimensional tolerances and packing format when requesting a quotation.

Where the Mat Fits in Your Assembly

Removable Insulation Jacket Cores

Use the mat as the internal insulation layer in fabricated covers for pipes, valves and equipment. Specify the space available between the inner and outer fabrics, together with the finished jacket geometry. The mat is a core material, not a complete removable jacket.

Equipment, Appliance and Oven Panels

Evaluate cut pieces for enclosed insulation layers in equipment housings, appliance panels and oven assemblies. Base selection on the temperature at the insulation location, not only the heater or process temperature. Include mounting details and clearances in the drawing.

Industrial Thermal and Acoustic Assemblies

A fibrous core can serve both heat-insulation and sound-absorption functions in machinery enclosures. Where acoustic performance is specified, provide the frequency range, facing construction and test requirement so the complete assembly can be evaluated.

Specify the Installed Condition, Not Thickness Alone

State nominal thickness and bulk density together. Also identify any compression during assembly: a mat squeezed into a narrower cavity is no longer installed at its nominal thickness. When comparing thermal data, use the relevant mean temperature, density and test method rather than a single conductivity figure without conditions.

Provide continuous temperature, short-duration peaks, exposure time and whether heating is by direct contact or radiation. The recommended service limit must be confirmed for the selected E-glass specification and complete assembly. A fiber melting point is not an operating temperature rating.

For a duty outside the approved E-glass range, compare silica needle mat as a separate material option. Adding foil, adhesive or stitching does not automatically increase the base mat's allowable service temperature.

Need Reinforcement, Foil Facing or Adhesive?

For fabrication reinforcement: Review stitch-bonded fiberglass needle mat when cutting, handling or the assembly design calls for an additional stitched structure. Confirm the thread specification as well as the base mat.

For a reflective surface: Select foil-faced fiberglass insulation mat for projects specifying an aluminum facing. The laminate and its orientation must suit the installation; foil facing does not mean adhesive backing is included.

For self-adhesive positioning: See adhesive-backed aluminum foil fiberglass insulation mat. Review the substrate, surface temperature, preparation and any mechanical-retention requirement before specifying a pressure-sensitive adhesive.

OEM Roll Supply and Custom-Cut Parts

BSTFLEX works with insulation fabricators, equipment manufacturers and industrial distributors. Request rolls for in-house cutting or submit a drawing for cut-part review. Identify holes, slots, bend locations, dimensional tolerances and the intended installation sequence so the proposed format matches your production process.

For a new assembly, agree on the material specification and sample requirements before production approval. Our OEM and custom manufacturing services cover application review, sample development and project-based testing support. Confirm order quantity, lead time and documentation requirements with the quotation.

Procurement Questions

Are fiberglass needle mat and fiberglass needle felt different products?

Both names are used for mechanically needled glass-fiber insulation. Confirm the fiber grade, thickness, density and surface finish rather than relying on the name alone. This page covers the plain E-glass construction.

Does binder-free mean the mat has a certified smoke rating?

No. Binder-free describes how the fiber web is held together; it is not a smoke or emissions classification. Identify any smoke, fire or other compliance requirement so the relevant material or assembly test can be reviewed.

What information is needed for a quotation?

Include the application, operating conditions, thickness, density, dimensions and quantity. For custom parts, add the drawing revision and tolerances. State whether you need a sample, technical data or a particular test report for approval.
