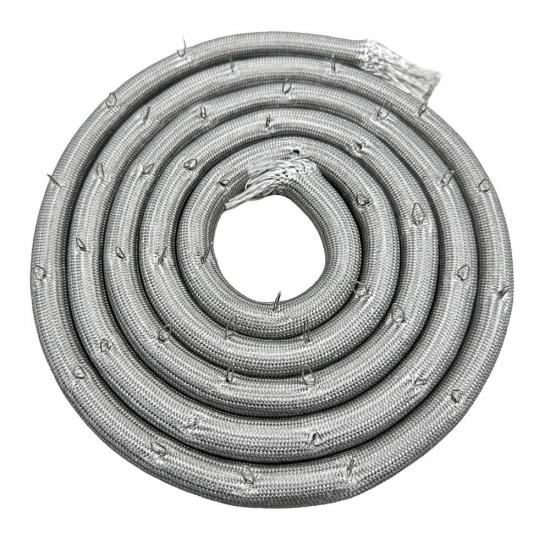

Clip-On Fiberglass Oven Door Gasket with 304 Stainless Steel Wire Core

A high-temperature oven door gasket must do more than tolerate heat. It must compress against the mating surface, recover after repeated door cycles and remain correctly positioned around the door or enclosure.

The BSTFLEX Clip-On Fiberglass Oven Door Gasket uses a three-part construction:

E-glass fiberglass overbraid
Knitted 304 stainless steel hollow wire core
Formed stainless steel mounting clips

This construction is particularly suitable for equipment where a conventional solid fiberglass rope does not provide the required combination of compression, recovery and controlled mechanical attachment.

The gasket can be manufactured according to the customer's door geometry, sealing gap, clip-hole pattern and installation requirements.

Construction

E-Glass Fiberglass Overbraid

The outer surface consists of braided E-glass fiberglass yarn.

The braided textile layer creates a flexible outer sealing surface around the metallic core and allows the gasket to follow straight sections, curves and corners around a door frame.

The braid structure can be adjusted according to the required gasket diameter, density and finished construction.

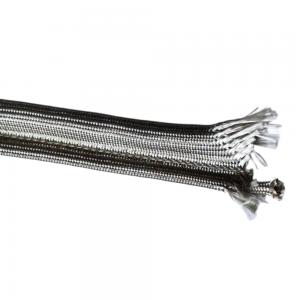

Knitted 304 Stainless Steel Hollow Core

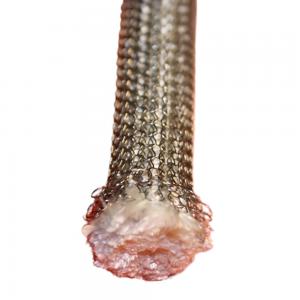

Inside the fiberglass braid is a tubular core manufactured from knitted 304 stainless steel wire.

Unlike a solid rope core, the hollow knitted metal structure can deform when the door closes and recover when the compression load is released.

This internal structure helps provide:

• Controlled gasket compression

• Elastic recovery after door opening

• Profile support

• Repeated compression capability

• Flexibility around corners

• Dimensional stability during installation

The required core construction should be selected according to the sealing gap, required closing force, gasket diameter and equipment geometry.

Formed Stainless Steel Mounting Clips

Individual formed stainless steel clips are incorporated into the gasket for mechanical attachment.

The clips engage corresponding mounting holes in the door, frame or enclosure structure.

For OEM production, the clip arrangement can be developed around the customer's equipment layout rather than relying on a fixed universal spacing.

Custom variables can include:

• Clip spacing

• Clip quantity

• Clip position

• Clip orientation

• Corner clip position

• Distance from gasket ends

• Door or frame hole pattern

This makes the gasket suitable for both new OEM equipment and engineered replacement applications.

Why Use a Hollow Stainless Steel Core?

The internal core strongly influences how an oven door gasket behaves when the door closes.

A solid textile rope and a knitted metallic hollow core do not compress in the same way.

The knitted stainless steel core creates an open, resilient internal structure. Under load, the structure can deform to accommodate the sealing gap. When the door opens, the metallic structure helps the gasket recover toward its original profile.

This construction can therefore be useful where the application requires repeated compression rather than a simple static packing material.

The final compression behavior depends on the wire construction, core diameter, outer braid and complete gasket geometry.

For this reason, gasket selection should be based on the actual door design rather than diameter alone.

Custom Clip Pattern for OEM Oven Doors

Clip position is one of the most important specifications for a clip-on oven door gasket.

For replacement projects, the hole pattern already exists in the equipment. The gasket therefore has to match the existing attachment locations.

For new OEM equipment, clip positions can be coordinated with the door or frame design.

BSTFLEX can develop the gasket from:

• Customer drawings

• Existing gasket samples

• Door frame dimensions

• Clip-hole dimensions

• Clip center-to-center spacing

• Corner dimensions

• Gasket routing drawings

• Equipment photographs combined with dimensional data

For repeat production, the approved clip pattern can be controlled according to the confirmed product drawing.

Custom Gasket Diameter

The correct gasket diameter depends on the available sealing space and the amount of compression required when the door is closed.

A larger gasket is not automatically a better seal.

If the gasket is too large or too stiff, excessive closing force may be required. If it is too small, sufficient contact may not be created around the sealing surface.

When developing a custom gasket, useful information includes:

• Free gasket diameter

• Closed sealing gap

• Minimum and maximum gap

• Door closing force

• Existing gasket dimensions

• Door frame geometry

• Compression requirement

For replacement applications, measuring the equipment is recommended in addition to measuring the old gasket because a used gasket may already be compressed or distorted.

Corner and Profile Design

An oven gasket frequently has to follow several corners around a rectangular or custom-shaped door.

The flexible fiberglass braid and knitted stainless steel core allow the gasket to follow equipment geometry, while the clip pattern can be adjusted according to the corner layout.

For custom projects, specify:

• Number of corners

• Corner radius

• Overall gasket route

• Straight section lengths

• Clip position near corners

• Required joint position

• End construction

A drawing is preferred for complex geometries.

Gasket End Termination

The ends of a clip-mounted oven gasket should be considered as part of the complete design.

Depending on the equipment and assembly method, the gasket may require a specified termination or joining arrangement.

BSTFLEX can evaluate end treatment based on the customer's existing gasket sample, drawing and installation method.

For OEM applications, termination details should be included on the approved product drawing so that gasket length and installation orientation remain consistent between production batches.

Typical Construction

Custom Manufacturing Options

BSTFLEX can manufacture the gasket according to equipment-specific requirements, including:

• Custom gasket diameter

• Custom stainless steel core construction

• Custom overall length

• Custom clip spacing

• Custom clip pattern

• Custom clip quantity

• Custom corner layout

• Custom end termination

• Pre-cut gasket lengths

• Gaskets developed from customer samples

• Gaskets manufactured from dimensional drawings

• OEM production quantities

• Private-label packaging

Typical Applications

The clip-on fiberglass gasket can be considered for:

• Industrial oven doors

• Commercial oven doors

• Drying ovens

• Curing ovens

• Powder coating ovens

• Heat treatment equipment

• Industrial dryers

• Furnace access doors

• Heated enclosures

• Thermal chambers

• Baking equipment

• Food processing ovens

• OEM thermal equipment

• Equipment access panels requiring a compressible high-temperature seal

Final construction should always be matched to the actual temperature, compression, mounting and mechanical requirements of the equipment.

Clip-On Gasket vs Conventional Fiberglass Rope Gasket

A conventional fiberglass rope gasket is normally installed in a groove, channel or other retaining structure.

A clip-on oven door gasket incorporates mechanical attachment points directly into the gasket construction.

This makes it particularly useful when the equipment already contains corresponding mounting holes or when an OEM wants a repeatable attachment pattern around the door.

The stainless steel hollow core also creates a different compression response from a conventional solid fiberglass rope.

The correct construction therefore depends on both sealing requirements and the equipment mounting system.

Information Required for a Custom Quote

For the most accurate quotation, provide:

1. Gasket outside diameter

2. Overall gasket length

3. Door or frame dimensions

4. Closed sealing gap

5. Clip quantity

6. Clip center-to-center spacing

7. Clip-hole dimensions

8. Corner locations and radius

9. Required end termination

10. Operating temperature

11. Existing gasket sample or photographs if available

12. Required quantity or annual demand

A drawing or original gasket sample is particularly useful when developing an OEM replacement.

OEM and Custom Manufacturing

BSTFLEX supports custom high-temperature gasket manufacturing for equipment manufacturers, industrial maintenance suppliers and replacement-parts programs.

Products can be developed from:

• Technical drawings

• Physical samples

• Existing door dimensions

• Installation-hole patterns

• Customer performance requirements

Prototype samples can be evaluated before production specifications are finalized.

For recurring OEM orders, confirmed dimensions, clip positions, materials and termination details can be incorporated into the controlled product specification.

Frequently Asked Questions

What is an oven door gasket with clips?

An oven door gasket with clips is a flexible thermal seal with mechanical mounting clips incorporated into the gasket. The clips fit into corresponding holes in the oven door or frame and hold the gasket in its designed position.

What is inside this fiberglass oven door gasket?

This construction uses a knitted 304 stainless steel hollow wire core beneath an E-glass fiberglass overbraid.

Why use a stainless steel hollow core?

The knitted hollow metal structure provides a compressible and resilient internal support. It can deform when the door closes and recover after the compression load is released.

Can the clip spacing be customized?

Yes. Clip spacing and position can be manufactured according to the customer's door or frame hole pattern and approved drawing.

Can you manufacture a replacement gasket from a sample?

Yes. A physical sample can be used together with equipment dimensions, clip spacing, sealing gap and application information to develop the replacement gasket.

Can the gasket diameter be customized?

Yes. The finished diameter and internal core construction can be developed according to the sealing gap, compression requirements and equipment geometry.

Is this the same as a fiberglass rope gasket?

No. Although both may use fiberglass on the outside, this clip-on gasket contains a knitted stainless steel hollow core and integrated mechanical clips. A conventional fiberglass rope normally uses a different internal construction and mounting method.

Can this gasket be supplied for OEM production?

Yes. BSTFLEX supports prototype development, customized dimensions, controlled clip patterns and repeat OEM production according to confirmed drawings and specifications.

Request a Custom Clip-On Oven Door Gasket

For a custom oven door gasket with clips, send BSTFLEX the gasket diameter, door dimensions, clip-hole pattern, clip spacing, operating conditions, required termination and quantity.

If an existing gasket is available, photographs or a physical sample can also be used for development.

BSTFLEX can manufacture the fiberglass overbraid, 304 stainless steel hollow core and clip arrangement according to the specific requirements of the oven, furnace, dryer or thermal equipment.
