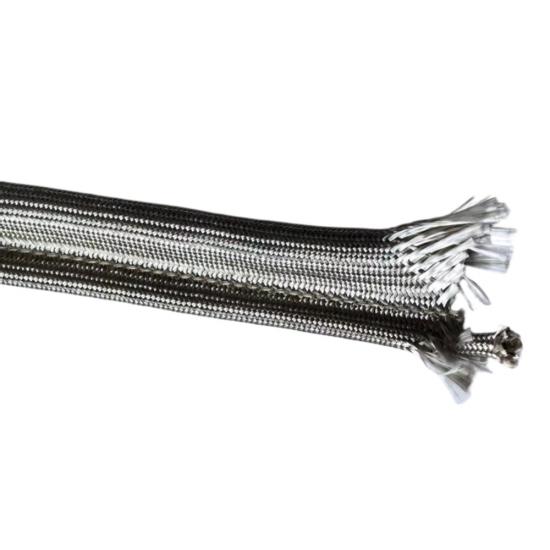

Double-Core Oval Fiberglass Oven & Kiln Door Gasket is a heavy-duty high-temperature textile seal built around two parallel internal cores to create a wider oval sealing profile than a conventional single-core round gasket.
The twin-core construction can use stainless steel knitted mesh cores individually covered with fiberglass and then combined under an additional fiberglass overbraid. An optional stainless steel knitted outer jacket can be added where increased abrasion protection is required.
The wider profile is designed for industrial ovens, kilns, furnaces and high-temperature access doors requiring a broad compression surface, increased profile stability or a custom gasket for a large sealing channel.
BSTFLEX manufactures custom double-core gasket profiles according to drawings, samples, sealing gaps and OEM equipment requirements.
order(moq):
1product origin:
Chinashipping port:
Shanghai, NingboThe gasket can be manufactured with two stainless steel knitted mesh cores, individual fiberglass overbraids around each core, and an additional common fiberglass overbraid that combines both cores into one stable oval profile. Where additional abrasion protection is required, an external knitted stainless steel wire mesh jacket can also be incorporated.
BSTFLEX manufactures custom double-core oven door gaskets according to equipment drawings, existing samples, sealing-channel dimensions and OEM requirements.
For other high-temperature door-sealing constructions, visit our high temperature gaskets and seals product range.
A double-core door gasket uses two internal sealing cores positioned side by side instead of one circular core.
When the two cores are combined under a common outer braid, the finished gasket develops an oval or flattened-oval cross-section:
Single-core gasket: approximately round
Double-core gasket: wider oval profile with two internal compression zones
This difference is important when an oven or kiln door has a sealing channel that is wider than it is deep, when the mating surface requires a broad gasket footprint, or when a single circular gasket does not adequately match the equipment geometry.
A custom double-core fiberglass gasket can be manufactured using the following construction:
The exact number of textile layers, core construction and outer reinforcement should be selected according to the equipment design rather than copied from a standard gasket specification.
The internal cores control much of the gasket's compression behavior and dimensional stability.
Two knitted stainless steel mesh cores positioned side by side can create a resilient internal structure while maintaining the wider oval geometry of the finished gasket.
Compared with a single-core gasket, the double-core construction can provide:
The required core diameter, mesh density and finished compression characteristics should be determined from the actual sealing gap and available closing force.
A round gasket works well when the sealing groove and contact geometry are designed around a circular profile.
Some industrial oven and kiln doors, however, use wider channels or larger contact surfaces. Increasing the diameter of a single round gasket is not always the best solution because it simultaneously increases both gasket width and gasket height.
A double-core oval gasket allows those two dimensions to be controlled more independently.
For example, a buyer may require additional sealing width without needing the same increase in gasket height. A twin-core construction can help create that geometry.
This is why the gasket should normally be specified by both finished width and finished height, rather than by diameter alone.
Fiberglass yarn can be braided around each internal core and around the combined double-core assembly.
The textile layers help:
Braid construction, yarn specification and finished density can be adjusted according to the required profile and equipment conditions.
Where the gasket experiences substantial rubbing, repeated sliding contact or abrasive interaction with steel channels and door surfaces, an additional stainless steel knitted wire mesh jacket can be installed over the fiberglass construction.
This option combines the wide double-core profile with the abrasion-resistant surface concept used in our Stainless Steel Wire Mesh Jacketed Fiberglass Oven & Kiln Door Gasket.
The outer metallic jacket should be selected because of mechanical conditions such as abrasion and repeated door movement, not simply because a higher temperature rating is desired.
These constructions solve different sealing problems.
Our Clip-On Fiberglass Oven Door Gasket with 304 Stainless Steel Wire Core uses a single resilient core and integrated clips for mechanical mounting.
The double-core oval gasket instead focuses on creating a wider sealing profile using two parallel internal cores.
| Construction | Primary Design Purpose |
|---|---|
| Single-core clip-on gasket | Round compressible seal with integrated attachment clips |
| Wire-jacketed gasket | Enhanced protection against external abrasion |
| Double-core oval gasket | Wide sealing footprint and twin internal support zones |
The construction is especially relevant where the equipment has a relatively large or wide sealing channel.
Typical applications can include:
Industrial oven and kiln doors may be opened and closed repeatedly during loading, production, inspection and maintenance.
A door gasket used in this environment must manage more than temperature. It may also experience repeated compression, changing sealing gaps, vibration, metal movement and mechanical wear.
The double-core construction can be engineered to provide a stable broad profile while the two internal cores share the compression load across the width of the gasket.
Actual gasket life depends on the selected materials, compression level, installation geometry, door alignment and operating environment.
A major advantage of the twin-core construction is the ability to develop custom width-to-height proportions.
Instead of ordering only by nominal diameter, buyers should specify:
BSTFLEX can develop the profile according to a cross-sectional drawing or an existing gasket sample.
Depending on the application and manufacturing feasibility, the double-core concept can be developed with different internal structures.
Possible configurations include:
The two cores do not necessarily have to be identical if the equipment requires different compression behavior across the gasket profile. Any asymmetric construction should, however, be confirmed through prototype evaluation before production.
The external gasket structure can also be adapted to different service conditions.
Options may include:

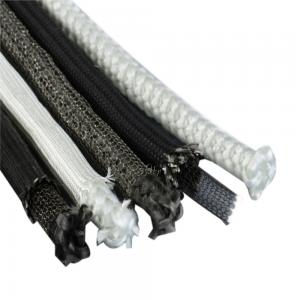

For a simpler general-purpose oven seal without the twin-core structure, see our Oven Door Gasket.
Do not select an oval door gasket only by measuring the worn gasket removed from the equipment.
A used gasket may already be compressed, stretched, flattened or distorted.
For replacement projects, measure both the existing gasket and the equipment itself.
Useful measurements include:
A photograph of the gasket cross-section is also useful, especially when the original internal construction is unknown.
| Item | Available Construction |
|---|---|
| Profile | Oval / flattened oval / custom twin-core profile |
| Number of Cores | Two parallel cores |
| Core Material | Stainless steel knitted mesh or custom construction |
| Primary Outer Material | Fiberglass braid |
| Individual Core Overbraid | Available |
| Combined Outer Overbraid | Fiberglass |
| External Metal Jacket | Optional stainless steel knitted wire mesh |
| Finished Width | Custom |
| Finished Height | Custom |
| Length | Custom |
| End Treatment | According to application |
| Temperature Rating | Depends on the complete selected material and gasket construction; confirm for the required configuration |
A double-core gasket is a multi-material assembly.
Its usable temperature cannot be determined only from the temperature capability of the fiberglass yarn.
The complete construction may include:
For this reason, BSTFLEX evaluates the requested operating temperature against the complete gasket configuration rather than assigning one universal temperature value to every double-core product.
BSTFLEX supports custom double-core door gasket development for industrial equipment manufacturers, maintenance suppliers and replacement-part programs.
Products can be developed from:
Prototype development is recommended when the gasket profile, core construction or required compression differs significantly from an existing design.
For an accurate custom quotation, provide:
A double-core oven door gasket contains two parallel internal cores rather than one. The cores are combined under an outer textile structure to produce a wider oval or flattened-oval sealing profile.
Two cores allow the gasket to provide a wider sealing footprint without requiring the same increase in gasket height that would result from simply increasing the diameter of a single round core.
Yes. Twin stainless steel knitted mesh cores are one possible construction for applications requiring resilient internal reinforcement.
Yes. Each core can be individually covered before both cores are combined under an additional common fiberglass overbraid.
Yes. Where abrasion or repeated mechanical contact is significant, an external knitted stainless steel wire mesh jacket can be considered.
No. A wire-mesh jacket describes the external protective layer. A double-core gasket describes the internal geometry. A double-core gasket may be supplied with or without an external metal jacket depending on the application.
No. The clip-on gasket uses an integrated mounting system and a single primary compression profile. The double-core gasket is primarily designed to create a wider oval sealing cross-section.
Yes. One of the main reasons to use a twin-core construction is to develop a wider profile with a controlled finished height. Exact dimensions depend on core sizes, braid construction and required compression.
Yes. A physical sample can be evaluated together with equipment dimensions and operating conditions to develop a custom replacement construction.
For a custom double-core oval fiberglass oven or kiln door gasket, send BSTFLEX your cross-sectional dimensions, sealing-channel size, closed door gap, operating conditions, required length and quantity.
If an existing gasket is available, provide photographs showing both the outer profile and cut cross-section. A physical sample can also be used for development.
BSTFLEX can develop the twin-core geometry, fiberglass overbraid, stainless steel mesh core construction and optional abrasion-resistant outer jacket according to the requirements of your industrial oven, kiln, furnace or thermal processing equipment.
