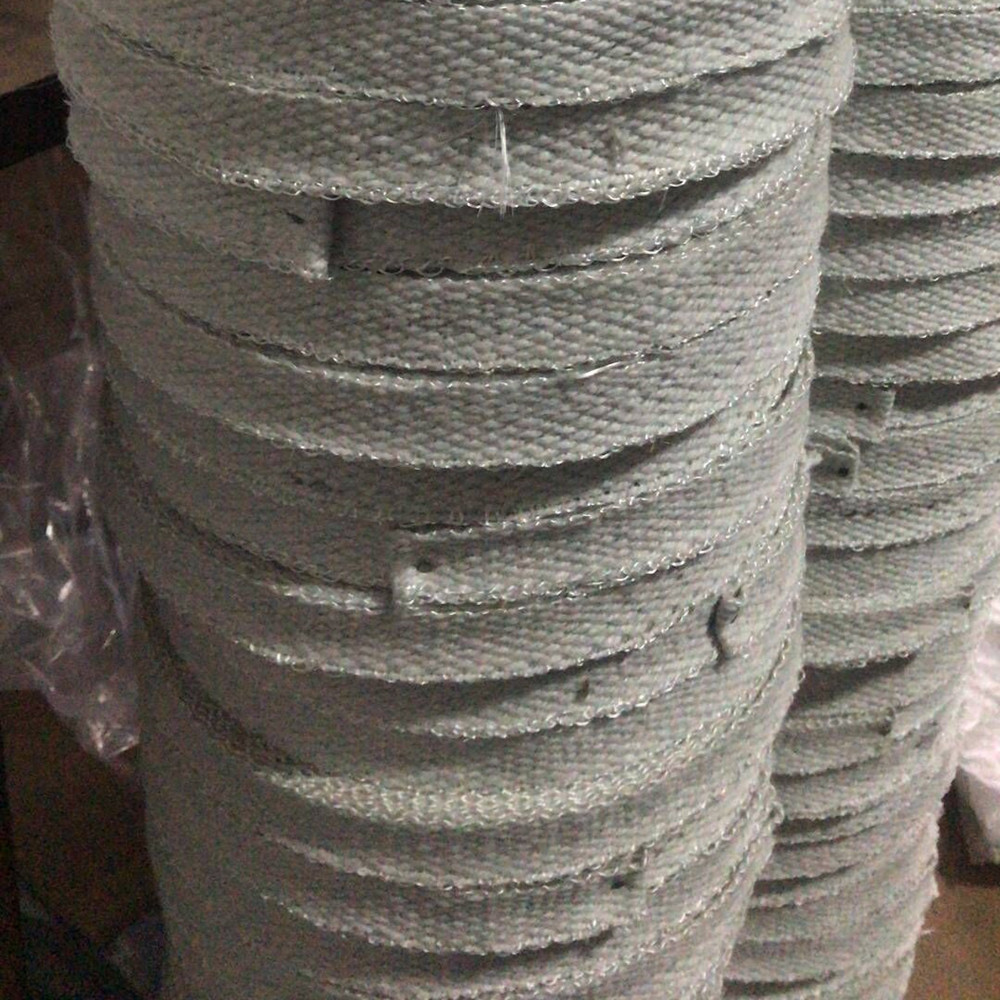

Ceramic Fiber Tape: The High-Temperature Engineering Solution for Demanding Industrial Applications

Engineered for Extreme Environments:
Ceramic fiber tape is crafted from premium alumina-silicate ceramic fibers, this high-performance tape withstands continuous temperatures up to 1260°C (2300°F) and intermittent peaks to 1430°C (2600°F). Its unique non-crystalline structure delivers exceptional thermal stability, near-zero thermal expansion, and rapid heat recovery – critical for energy-intensive processes.

Unmatched Versatility & Strength:

• Flexible Yet Robust: Combines textile-like pliability with impressive tensile strength (≥180 PSI), conforming tightly to complex geometries – valves, ducts, pipes – without tearing.

• Thermal Barrier Excellence: Ultra-low thermal conductivity (0.12 W/m·K @ 600°C) minimizes heat loss, boosts furnace efficiency, and protects personnel from radiant heat.

• Chemical & Corrosion Resistant: Inert to most acids, alkalis, and solvents (excludes HF & strong phosphates), ensuring longevity in harsh chemical environments.

• Electrical Insulation: Superior dielectric properties prevent electrical leakage in high-temp sensors, cables, and heating elements.

Precision Performance Specifications:

Industry-Proven Applications:

• Sealing & Gasketing: Creates high-temp seals for expansion joints, furnace doors, kiln car lids.

• Pipe & Duct Insulation: Bundles or wraps to prevent heat loss in refinery pipelines, exhaust systems.

• Fire Protection: Wraps structural steel, cables, and penetrations for critical firestopping.

• Thermal Management: Shields thermocouples, sensors, and hot components in aerospace, power generation.

• Foundry & Metal Processing: Protects ladles, tundishes, and welding fixtures from molten metal splash.

Beyond Basic Insulation:

• Acoustic Damping: Reduces high-frequency noise in turbines and heavy machinery.

• Erosion Resistance: Protects surfaces from abrasive particle flow in CFB boilers.

• Easy Fabrication: Cut with shears; install with lacing wire, staples, or high-temp adhesives.

Safety & Compliance:

• Low Biopersistence: Bio-soluble fibers enhance handling safety (Observe local regulations).

• Compliant: Meets RoHS directives. Note: Requires appropriate PPE (gloves, respirator) during installation.

Sustainability Impact:
Reduces energy consumption by up to 30% in industrial heating systems, lowering CO₂ emissions and operational costs over its extended service life.

Choose Ceramic Fiber Tape For: Uncompromising thermal protection, resilient sealing, and adaptable performance where conventional materials fail. Optimize safety, efficiency, and durability in your most critical high-heat processes.

Available in Custom Sizes: Standard widths 25mm-100mm (1"-4"); thicknesses 1.5mm-6mm (1/16"-1/4"); rolls up to 45m (150ft). Inquire about reinforced or foil-backed variants.
