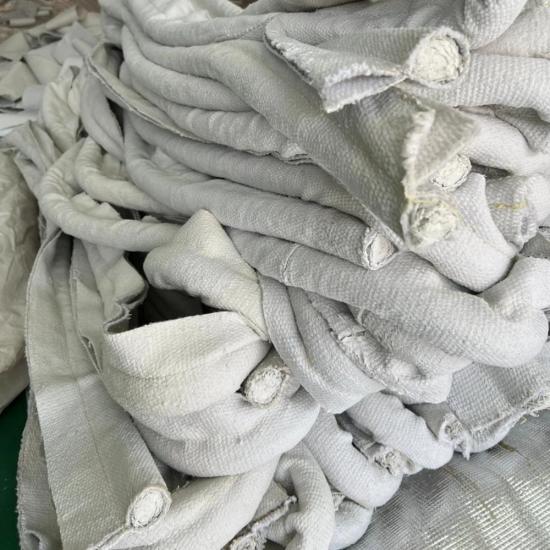

Ceramic Fabric Cover Ceramic Core Tadpole Gasket

The Ceramic Fabric Cover Ceramic Core Tadpole Gasket is a high temperature sealing solution designed for thermal equipment where conventional rubber, plastic, or standard textile gaskets cannot provide sufficient heat resistance. It combines a heat-resistant ceramic fabric outer cover with a ceramic-based internal core to create a flexible sealing profile for doors, panels, access openings, and other high-temperature joints.

The characteristic bulb-and-tail construction allows the gasket to be compressed against a mating surface while the attached tail provides a practical method for installation. Depending on the equipment design, the tail can be secured mechanically or incorporated into a retaining channel. BSTFLEX can manufacture the gasket in customized diameters, lengths, profiles, core constructions, and attachment configurations for OEM and replacement applications.

Product Construction

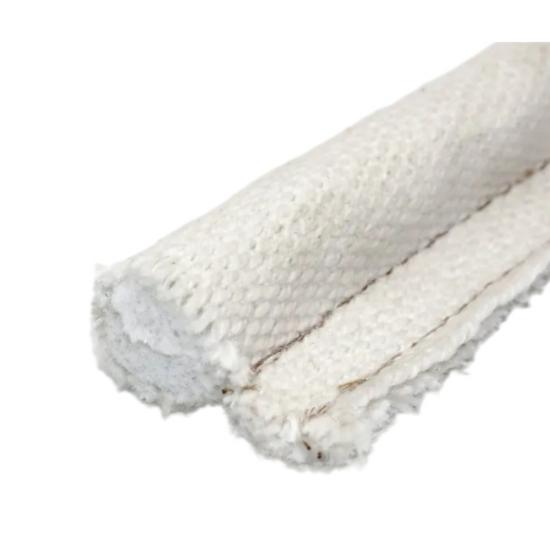

This ceramic tadpole gasket is engineered as a multi-component sealing assembly rather than a simple strip of fabric. The outer ceramic fabric protects the internal structure from direct exposure to the heat source, while the ceramic core provides the body needed to form and maintain the sealing profile.

How the Ceramic Core Tadpole Gasket Works

A tadpole gasket uses a rounded sealing section connected to a flat or extended mounting tail. When the equipment door or panel closes, the bulb section is compressed against the mating surface. This controlled compression helps close the joint and reduce the passage of hot gases, heat, dust, and other process media through the opening.

Unlike a flat gasket that relies primarily on surface contact, the bulb profile can accommodate a degree of movement and irregularity between two mating components. This makes the design particularly useful for thermal doors and access panels that are opened and closed repeatedly.

Ceramic Fabric Cover for High Temperature Sealing

The ceramic fabric cover is selected for applications where the gasket surface is exposed to substantial thermal loads. Ceramic textile constructions are suitable for demanding heat protection and sealing environments and can maintain their function at temperatures well beyond the practical range of conventional organic gasket materials.

The fabric construction also provides flexibility that is important when the gasket must follow a curved door frame, irregular perimeter, or fabricated metal surface. The finished gasket can be produced in continuous lengths, formed sections, or custom assemblies according to the geometry of the equipment.

Ceramic Core for Thermal Equipment Doors

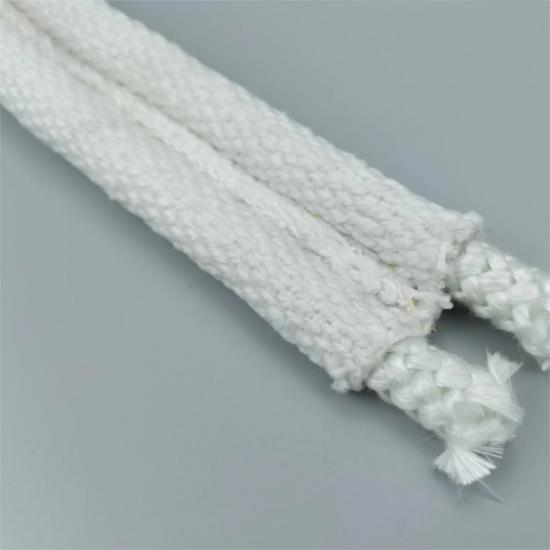

The ceramic core gives the tadpole gasket its characteristic rounded sealing profile. It provides the volume required for compression while maintaining a lightweight, non-metallic internal structure.

A ceramic core can be advantageous in equipment where the gasket must tolerate high temperatures without introducing a metallic core into the sealing profile. Core density, diameter, flexibility, and construction can be selected according to the required compression characteristics and available installation space.

Key Advantages

• Designed for high temperature sealing environments
• Ceramic fabric outer cover for demanding thermal exposure
• Ceramic core provides a lightweight non-metallic sealing structure
• Bulb profile supports compression sealing around doors and panels
• Flexible construction can follow curved and irregular equipment surfaces
• Suitable for repeated opening and closing of thermal equipment doors
• Can be manufactured in customized diameters, lengths, and profiles
• Available for OEM equipment and replacement gasket requirements
• Suitable for industrial furnaces, ovens, kilns, and other thermal systems

Custom Ceramic Fabric Tadpole Gasket Options

Industrial equipment rarely uses a single universal gasket size. BSTFLEX manufactures ceramic fabric tadpole gaskets according to the dimensions and installation requirements of the application.

Applications for Ceramic Tadpole Gaskets

Ceramic core tadpole seals are commonly considered for industrial equipment in which a flexible perimeter seal must operate near high-temperature zones. Typical applications include:

• Industrial furnace doors
• Heat treatment furnace enclosures
• Industrial oven doors
• Kiln doors and access panels
• Thermal processing equipment
• High temperature inspection doors
• Combustion equipment access panels
• Refractory-lined equipment
• Drying and curing systems
• Custom OEM thermal enclosures

Furnace Door and Kiln Door Sealing

Furnace and kiln doors present a particularly demanding sealing environment. The gasket may be exposed to elevated temperatures, repeated thermal cycling, compression from the closing mechanism, and movement caused by expansion and contraction of the surrounding metal structure.

The bulb section of a ceramic tadpole gasket is positioned along the sealing perimeter, while the tail is attached to the door or frame. When the door closes, the bulb is compressed to create contact with the opposing surface. The flexible profile helps accommodate small changes in alignment that can occur during thermal operation.

Industrial Oven Door Gasket

For industrial ovens, the gasket can be configured around the perimeter of a hinged, lift-up, sliding, or removable door. The ceramic fabric cover provides a heat-resistant textile surface, while the ceramic core maintains the shape of the sealing bulb.

For OEM projects, BSTFLEX can work from drawings, samples, photographs with dimensions, or existing gasket specifications to develop a matching profile.

Tadpole Gasket, Tadpole Seal and Tadpole Tape

Different industries and suppliers use several names for this style of flexible high temperature gasket. Tadpole gasket, tadpole seal, tadpole tape, and tadpole gasket tape can refer to similar bulb-and-tail sealing constructions.

The term used for a specific product often depends on its application and attachment method. For procurement and engineering searches, BSTFLEX can supply ceramic fabric tadpole gaskets under the terminology used in the customer's drawings, specifications, or maintenance documentation.

Technical Information

The actual operating temperature should be evaluated together with exposure time, atmosphere, compression, mechanical movement, direct flame contact, installation method, and the specific ceramic materials used in the finished gasket. BSTFLEX can recommend the appropriate construction after reviewing the application conditions.

Why Choose BSTFLEX for Ceramic Tadpole Gaskets

BSTFLEX develops and manufactures flexible thermal protection and high temperature textile products for industrial applications. Our tadpole gasket production can be adapted to application-specific dimensions rather than being limited to a single standard profile.

For OEM and replacement projects, we can evaluate the required bulb diameter, tail dimensions, ceramic fabric construction, core characteristics, overall length, corner configuration, and installation method. This approach helps engineers select a gasket that fits the actual equipment instead of adapting the equipment to a generic seal.

Frequently Asked Questions

What is a ceramic fabric cover ceramic core tadpole gasket?

It is a high temperature tadpole gasket consisting of a ceramic fabric outer cover and a ceramic internal core. The bulb-and-tail design allows the rounded section to provide compression sealing while the tail provides an attachment area.

Where are ceramic core tadpole gaskets used?

They are commonly used around high-temperature furnace doors, industrial oven doors, kiln access panels, thermal processing equipment, inspection openings, and other thermal enclosures.

What is the difference between a ceramic tadpole gasket and a standard tadpole gasket?

The principal difference is the material construction. A ceramic tadpole gasket uses ceramic textile and ceramic core materials selected for high-temperature environments. Other tadpole gasket constructions may use fiberglass, silica, metallic cores, or different textile covers depending on the application.

Can the ceramic tadpole gasket be customized?

Yes. Customization can include bulb diameter, tail width, gasket length, core construction, fabric specification, profile geometry, corners, and attachment configuration.

Can you manufacture a replacement tadpole seal from an existing sample?

Yes. An existing gasket sample, engineering drawing, dimensional specification, or suitable application information can be used as the basis for developing a replacement ceramic tadpole seal.

Is this gasket suitable for continuous high temperature service?

Suitability depends on the selected ceramic materials and actual operating conditions. Continuous temperature, thermal cycling, mechanical compression, atmosphere, direct flame exposure, and installation conditions should all be considered before selecting the final construction.

Request a Custom Ceramic Tadpole Gasket

If you need a ceramic fabric tadpole gasket for a furnace, oven, kiln, thermal enclosure, or other high-temperature system, send BSTFLEX your required dimensions and operating conditions. We can evaluate the bulb size, tail configuration, ceramic fabric, core construction, and overall profile for your application.

For faster technical evaluation, provide the gasket drawing, existing sample dimensions, required length, installation method, operating temperature, and equipment application when available.

Contact BSTFLEX for a custom ceramic core tadpole gasket solution.
