BSTFLEX high temperature tadpole gasket is a flexible bulb-and-tail sealing solution designed for demanding thermal applications. It features a high temperature silica cloth cover and an Inconel core that provides structural support to the sealing bulb. The rounded bulb is designed for compression against a mating surface, while the extended tail provides a convenient area for mechanical attachment.
This silica tadpole gasket is suitable for furnace doors, industrial oven doors, kilns, heat treating equipment, thermal processing chambers, access panels and other high temperature enclosures. The gasket can be customized in bulb diameter, tail dimensions, core construction, length, shape and overall profile to match specific equipment requirements.
Also known as a tadpole seal, tadpole tape or tadpole gasket tape, this product provides a flexible approach to high temperature door and panel sealing. BSTFLEX supports custom manufacturing based on drawings, dimensions or samples for OEM and industrial applications.
order(moq):
1Payment:
EXW, FOB, CIF, DDP, FCA, etcshipping port:
Shanghai, NingboA tadpole gasket is a flexible high temperature sealing component designed with a rounded bulb and an extended mounting tail. The bulb provides the primary sealing surface, while the tail allows the gasket to be mechanically secured to a door, frame, flange, access panel or other equipment structure.

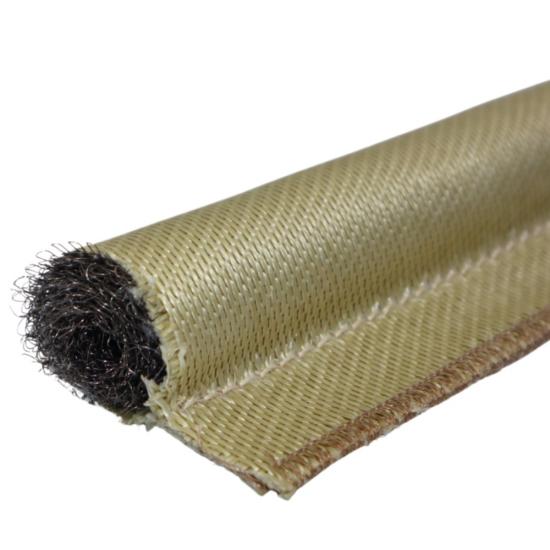

This high temperature tadpole gasket combines a silica cloth outer cover with an Inconel core to provide flexible thermal sealing for demanding industrial environments. The silica cloth protects the gasket from high temperatures, while the Inconel core supports the bulb profile and helps maintain controlled compression during installation and thermal cycling.
BSTFLEX manufactures custom tadpole gaskets, tadpole seals and tadpole gasket tape according to application requirements. Bulb diameter, tail dimensions, core construction, cover material, gasket length and overall configuration can be customized for industrial ovens, furnace doors, kilns, thermal processing equipment and other high temperature sealing applications.

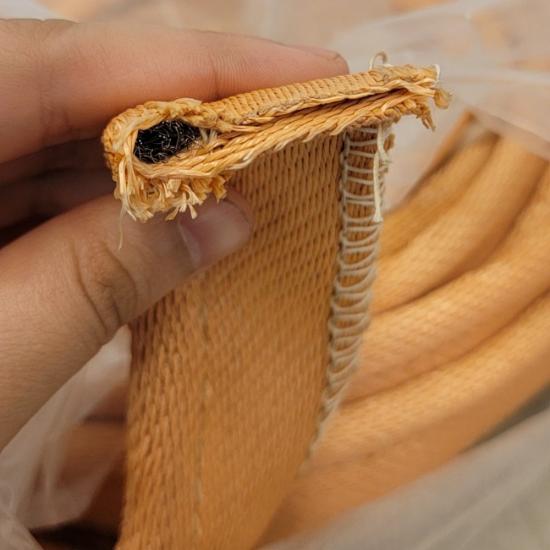

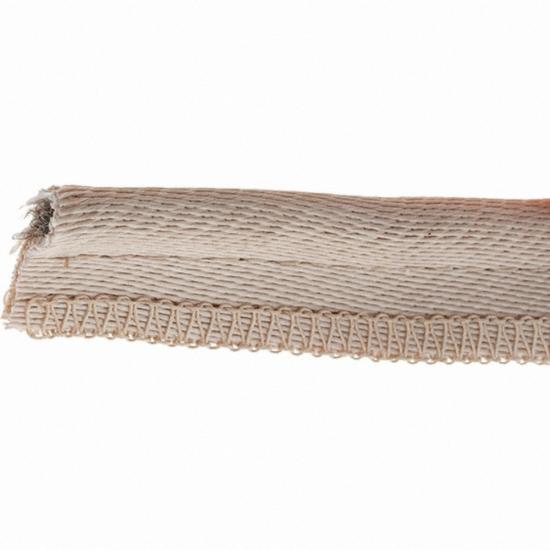

The tadpole gasket uses a bulb-and-tail construction designed for compression sealing. The rounded bulb forms the sealing section, while the extended tail provides the mounting section. An internal Inconel core can be used to provide structural support inside the bulb, while the silica cloth cover provides a durable high temperature textile barrier.
| Component | Material | Function |
|---|---|---|
| Outer Cover | Silica Cloth | Provides high temperature protection and forms the external sealing surface |
| Core | Inconel | Provides structural support and helps maintain the gasket profile |
| Bulb | Silica Cloth Covered Core | Provides the primary compressible sealing section |
| Tail | Silica Cloth | Provides a flexible mounting section for mechanical attachment |
| Sewing Thread | High Temperature Thread | Secures the textile cover and maintains the gasket construction |
A tadpole gasket seals an opening through controlled compression of its rounded bulb. The tail is attached to the equipment frame using a suitable mechanical fastening method, while the bulb extends toward the mating surface.
When the furnace door, oven door, access panel or other component is closed, the bulb is compressed between the two mating surfaces. This compression creates a continuous sealing barrier around the opening while allowing the gasket to accommodate minor dimensional variations and movement.
The basic structure consists of four functional sections:
Tadpole gasket, tadpole seal, tadpole tape and tadpole gasket tape are terms commonly used to describe related bulb-and-tail high temperature sealing products.
The word “tadpole” describes the characteristic shape of the product. The rounded bulb provides the compressible sealing element, while the tail provides the mounting area. Different manufacturers and industries may use different terminology for similar constructions.
| Term | Typical Meaning | SEO and Product Relevance |
|---|---|---|
| Tadpole Gasket | Bulb-and-tail high temperature gasket | Primary product term |
| Tadpole Seal | High temperature bulb seal with mounting tail | Core product synonym |
| Tadpole Tape | Industry term for certain tadpole-style sealing constructions | Product variation keyword |
| Tadpole Gasket Tape | Flexible tadpole-style gasket or sealing tape | Long-tail commercial keyword |
For customers searching for a tadpole gasket, the required construction can vary considerably depending on operating temperature, compression, mounting method and equipment design. BSTFLEX can manufacture the appropriate profile according to drawings, samples or specified dimensions.
The silica cloth cover is designed for high temperature sealing applications where ordinary textile or rubber sealing materials may not be suitable. Silica fibers provide excellent resistance to elevated temperatures and can be used in thermal equipment where the gasket is exposed to radiant heat and hot surfaces.
The Inconel core provides additional mechanical support within the sealing bulb. This construction is suitable for applications where the gasket must retain its shape and provide repeatable compression during heating and cooling cycles.
The actual operating temperature of a finished silica tadpole gasket depends on the silica fabric grade, core construction, sewing thread, installation conditions, exposure time and equipment design. BSTFLEX can recommend the appropriate construction according to the application's temperature and mechanical requirements.
The silica cloth outer layer provides thermal protection for applications involving elevated temperatures, radiant heat and repeated thermal exposure.
An Inconel core provides internal support for the bulb and helps maintain the intended gasket geometry during compression and thermal cycling.
The rounded bulb is designed to compress against the mating surface and accommodate minor variations in the equipment structure.
The extended tail provides a practical attachment area for mechanical fastening systems such as clips, retainers, screws, bolts or other suitable hardware.
Bulb diameter, tail width, tail thickness, gasket length, core configuration and overall profile can be manufactured according to the customer's equipment requirements.
The flexible construction allows tadpole gaskets to be produced in straight lengths, rings, frames and other custom configurations for industrial thermal sealing.
Industrial equipment does not use one universal gasket profile. The correct high temperature tadpole gasket must match the available installation space, compression distance, mounting structure and operating conditions.
BSTFLEX provides custom tadpole gasket manufacturing for OEMs, equipment manufacturers, maintenance suppliers and industrial users. Customers can specify the gasket dimensions and materials according to their sealing requirements.
| Customization | Available Options |
|---|---|
| Bulb Diameter | Custom according to compression requirements |
| Tail Width | Custom |
| Tail Thickness | Custom |
| Gasket Length | Custom straight length or formed configuration |
| Core Material | Inconel or other suitable core construction |
| Cover Material | Silica cloth and other high temperature textile options |
| Profile | Single bulb, double bulb and other custom profiles |
| Shape | Straight, ring, frame or custom formed assembly |
| Property | Specification |
|---|---|
| Product Type | Tadpole Gasket / Tadpole Seal |
| Cover Material | Silica Cloth |
| Core Material | Inconel |
| Construction | Flexible bulb and mounting tail |
| Bulb Diameter | Custom |
| Tail Width | Custom |
| Tail Thickness | Custom |
| Overall Length | Custom |
| Shape | Straight, ring, frame or custom configuration |
| Installation | Mechanical fastening |
| Temperature Rating | Dependent on material grade and construction |
| Customization | Available |
High temperature tadpole gaskets are used where flexible thermal sealing is required around doors, panels, access openings and removable components.
Furnace and industrial oven doors require a seal that can tolerate elevated temperatures while accommodating repeated opening and closing. A tadpole gasket for furnace doors provides a flexible bulb that can be compressed against the door frame while the tail remains mechanically secured to the equipment.
The silica cloth and Inconel construction is particularly suitable for applications where both thermal resistance and mechanical stability are important. The gasket profile can be selected according to the available gap and required compression.
A silica tadpole seal provides a flexible sealing interface for thermal equipment operating under demanding conditions. The silica textile cover acts as the exposed thermal barrier, while the internal core supports the bulb and helps maintain its profile.
Depending on the application, BSTFLEX can supply different bulb sizes and tail configurations to match the equipment geometry. Samples, drawings and dimensional specifications can be used as references for custom production.
BSTFLEX focuses on high temperature textile products, protective sleeves, thermal insulation and industrial sealing solutions. Our manufacturing capability allows tadpole gaskets to be developed around the customer's actual installation and operating requirements rather than relying only on standard profiles.
For the most accurate quotation, provide the gasket profile, bulb diameter, tail dimensions, required length, operating temperature and installation method. A drawing or physical sample can also be supplied for dimensional reference.
BSTFLEX can review the application and recommend a suitable tadpole gasket construction based on the required temperature resistance, compression and mounting method.
A tadpole gasket is a flexible high temperature gasket with a rounded bulb and an extended mounting tail. The bulb provides the sealing surface while the tail is used to attach the gasket to the equipment.
A tadpole seal is commonly used for furnace doors, industrial oven doors, kilns, access panels, thermal processing equipment and other high temperature enclosures requiring flexible compression sealing.
In many industrial applications, tadpole gasket and tadpole seal are used to describe the same basic bulb-and-tail sealing profile. The exact construction can vary between manufacturers.
Tadpole tape is another term used for certain flexible bulb-and-tail high temperature sealing products. Depending on the manufacturer, it may refer to a tadpole gasket, tadpole seal or related gasket tape construction.
An Inconel core provides structural support inside the sealing bulb and can help the gasket maintain its profile during compression and repeated thermal cycling.
Yes. BSTFLEX can customize the bulb diameter, tail dimensions, gasket length, core construction, cover material, profile and overall configuration according to the application.
Yes. A technical drawing, dimensional specification or physical sample can be used as a reference for custom tadpole gasket production.
The most useful information includes bulb diameter, tail width and thickness, gasket length, operating temperature, core material, cover material, installation method and application. A drawing or sample can provide additional dimensional information.
Need a tadpole gasket, tadpole seal or tadpole tape for a high temperature application? Send BSTFLEX your dimensions, drawing or sample requirements. We can develop a custom silica cloth tadpole gasket with an Inconel core to match your equipment and sealing conditions.
