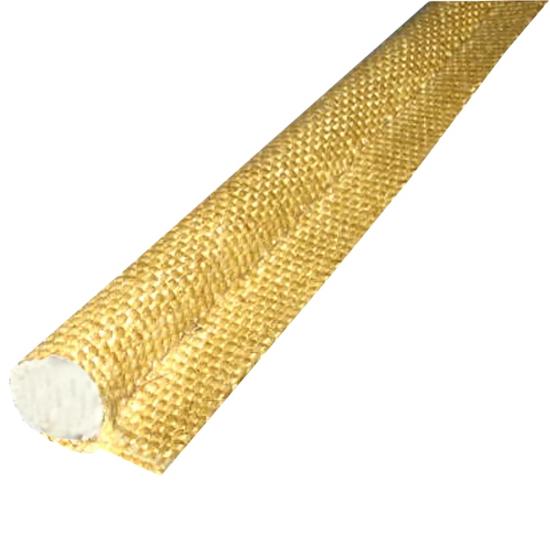

The Vermiculite Coated Fiberglass Tadpole Gasket Tape with Inconel or Stainless Steel Mesh Core is a high-temperature sealing solution designed for demanding industrial environments such as furnaces, boilers, ovens, and kilns.
This gasket features a vermiculite coated fiberglass outer layer that provides excellent resistance to extreme heat, abrasion, and thermal degradation. The bulb section of the gasket is reinforced with an Inconel wire mesh core or stainless steel mesh core, giving the seal superior compression strength and long service life under repeated door closing and high-temperature cycling.
The tadpole shape design includes a round bulb head for effective sealing and a flat tail for easy attachment to furnace doors or metal flanges. This structure allows the gasket to maintain consistent sealing performance while accommodating thermal expansion and mechanical movement.
With outstanding heat resistance, flexibility, and durability, vermiculite coated fiberglass tadpole gasket tape is widely used for industrial furnace doors, boiler access panels, oven doors, and other high-temperature sealing applications where reliable thermal insulation and gas sealing are required.
order(moq):
1Payment:
EXW, FOB, CIF, DDP, FCA, etcshipping port:
Shanghai, NingboThe Vermiculite Coated Fiberglass Tadpole Gasket Tape is a high-performance sealing solution designed for extreme temperature environments such as industrial furnaces, boilers, ovens, kilns, and high temperature processing equipment.
The gasket consists of a vermiculite coated fiberglass outer layer that enhances heat resistance and abrasion protection. Inside the gasket head is a reinforced Inconel wire mesh core or stainless steel mesh core, providing excellent compression strength and long service life in demanding sealing applications.
The unique tadpole shape design allows the round bulb section to create an effective seal while the flat tail section allows easy attachment to doors or flanges.
| Component | Material | Function |
|---|---|---|
| Outer Layer | Vermiculite Coated Fiberglass | Heat resistance and abrasion protection |
| Core Reinforcement | Inconel Wire Mesh or Stainless Steel Mesh | Structural support and compression strength |
| Tail Section | Fiberglass Tape | Attachment to door or flange |
| Parameter | Specification |
|---|---|
| Product Name | Vermiculite Coated Fiberglass Tadpole Gasket Tape |
| Outer Material | Vermiculite Coated Fiberglass |
| Core Material | Inconel Wire Mesh / Stainless Steel Mesh |
| Continuous Temperature | 1000°C (1832°F) |
| Peak Temperature | 1100°C (2012°F) |
| Bulb Diameter | 10 mm – 50 mm |
| Tail Width | 20 mm – 100 mm |
| Length | Custom Length Available |
| Color | Gold / Brown |
What is the purpose of a tadpole gasket?
Tadpole gaskets provide flexible sealing for furnace and oven doors while allowing easy installation using the flat tail section.
Why use vermiculite coated fiberglass?
Vermiculite coating improves heat resistance and abrasion durability compared with untreated fiberglass.
What is the advantage of an Inconel core?
Inconel wire mesh provides excellent high temperature strength and corrosion resistance in extreme heat environments.
Can the gasket be customized?
Yes, custom bulb diameter, tail width, and length are available.
For pricing, samples, or custom specifications of the Vermiculite Coated Fiberglass Tadpole Gasket Tape, please contact our technical sales team.
