Inconel Stocking Ceramic Fabric Cover Ceramic Core Tadpole Gasket

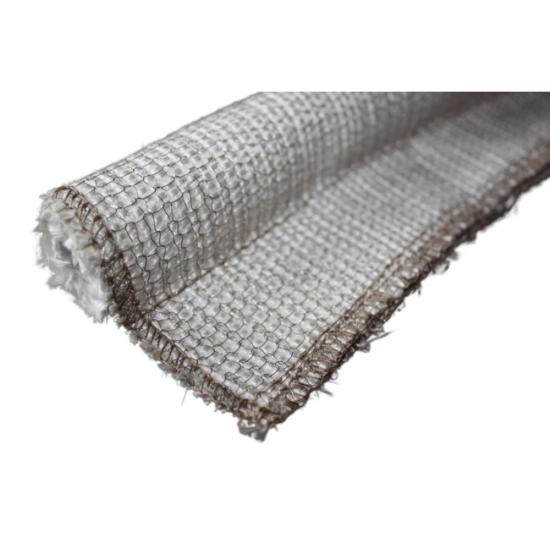

The Inconel Stocking Ceramic Fabric Cover Ceramic Core Tadpole Gasket is a high temperature sealing component developed for industrial equipment exposed to severe heat, repeated compression, and mechanical wear. Its multi-layer construction combines an Inconel wire stocking, ceramic fabric cover, and ceramic core to create a reinforced tadpole gasket for demanding thermal sealing applications.

The outer Inconel stocking provides additional mechanical protection to the ceramic fabric surface, while the ceramic fabric forms a heat-resistant textile barrier around the ceramic core. The rounded bulb creates the primary compression seal and the attached tail provides a practical mounting section for installation on doors, panels, frames, and thermal equipment.

BSTFLEX manufactures this Inconel tadpole gasket in application-specific sizes and configurations for furnace doors, industrial ovens, kilns, thermal processing equipment, refractory systems, and other high temperature enclosures.

Multi-Layer Construction for Demanding Thermal Sealing

Unlike a basic textile gasket, this reinforced tadpole seal uses several material layers to address different operating requirements. Each component has a specific function within the finished sealing assembly.

Why Use an Inconel Stocking?

The Inconel wire stocking is the distinguishing feature of this high temperature tadpole gasket. It forms a protective metallic mesh around the ceramic fabric construction, helping the gasket withstand mechanical contact and surface abrasion that can occur during installation, door movement, maintenance, or repeated thermal cycling.

This reinforced construction is particularly useful where a conventional exposed ceramic textile gasket may encounter rubbing or physical contact with adjacent metal components. The stocking provides an additional protective layer without replacing the flexible sealing function of the ceramic core.

The exact Inconel alloy, wire diameter, mesh construction, and stocking density can be selected according to the required thermal and mechanical performance of the finished gasket.

Ceramic Fabric Cover

The ceramic fabric cover surrounds the ceramic core and provides the primary textile barrier between the internal sealing structure and the operating environment. Ceramic fabric is suited to high temperature applications where conventional organic fabrics are unsuitable.

The fabric construction also allows the finished gasket to remain sufficiently flexible for installation around door perimeters, access openings, curved frames, and other irregular geometries. Material selection can be adjusted according to temperature exposure, flexibility requirements, mechanical conditions, and equipment design.

Ceramic Core Sealing Structure

The ceramic core forms the rounded bulb of the tadpole gasket. When the equipment door or panel closes, the bulb is compressed against the mating surface to create the sealing contact required around the opening.

The ceramic core provides the body and profile required for compression while keeping the internal sealing structure non-metallic. Core diameter, density, and construction can be selected to match the available sealing gap and the desired compression characteristics.

How the Inconel Tadpole Gasket Seals

The gasket is installed with the bulb positioned along the sealing perimeter and the tail secured to the door, frame, panel, or retaining structure. As the equipment closes, the bulb is compressed between the mating surfaces.

The rounded profile helps distribute compression over the sealing area rather than concentrating the load along a narrow flat strip. This makes the design suitable for equipment where the mating surfaces experience small changes in alignment, thermal expansion, or repeated opening and closing.

1. Position the bulb along the required sealing perimeter.
2. Align the mounting tail with the designated attachment surface.
3. Secure the tail using the specified fastening or retaining method.
4. Close the mating door or panel to establish compression on the bulb.
5. Verify that the gasket is not excessively compressed or mechanically restricted.

Performance Advantages

• Reinforced construction for demanding high temperature environments
• Inconel wire stocking adds mechanical protection to the outer surface
• Ceramic fabric cover provides a heat-resistant textile barrier
• Ceramic core creates a flexible compressible sealing bulb
• Suitable for repeated thermal cycling when correctly specified
• Can accommodate curved and application-specific sealing paths
• Useful where both thermal resistance and abrasion protection are required
• Available in customized bulb and tail dimensions
• Suitable for OEM production and replacement gasket programs

Applications

The reinforced construction makes this Inconel stocking tadpole gasket suitable for thermal equipment where the gasket may be exposed to both high temperatures and physical wear.

• Industrial furnace doors
• Heat treatment furnace enclosures
• Industrial oven doors and access panels
• Kiln doors and inspection openings
• Thermal processing equipment
• Refractory-lined equipment
• High temperature chambers
• Combustion equipment enclosures
• Drying and curing ovens
• Glass manufacturing equipment
• Paper and pulp processing equipment
• Custom OEM thermal sealing systems

Furnace Door Sealing

Furnace doors are subject to significant temperature differences, thermal expansion, mechanical movement, and repeated compression. A gasket used around the door perimeter must maintain its sealing profile while also tolerating the physical conditions associated with opening and closing the equipment.

The Inconel stocking helps protect the ceramic fabric cover from mechanical damage, while the ceramic core provides the compressible bulb. This combination makes the gasket suitable for furnace door designs where a standard textile tadpole gasket may require additional surface reinforcement.

Industrial Oven and Kiln Applications

Industrial ovens and kilns frequently use perimeter seals around doors, removable panels, inspection covers, and access openings. The gasket geometry can be manufactured to follow the equipment perimeter, including straight sections and application-specific formed sections.

For larger thermal equipment, the gasket can be supplied according to an engineering drawing or specified perimeter length. Corner construction and joining methods can be considered during production to create a practical installation solution.

Custom Inconel Tadpole Gasket Options

BSTFLEX can customize the gasket construction according to the physical dimensions and operating conditions of the application. The correct configuration depends on the sealing gap, compression requirement, temperature, mechanical exposure, installation method, and available mounting space.

Technical Data

Temperature performance should be evaluated based on the complete gasket construction rather than one material alone. Continuous operating temperature, peak temperature, thermal cycling, atmosphere, direct flame exposure, compression, mechanical movement, and surface abrasion can all affect service life.

Inconel Tadpole Gasket vs Standard Ceramic Tadpole Gasket

Both constructions use a ceramic core and ceramic textile components, but the addition of an Inconel stocking changes the mechanical characteristics of the finished gasket.

Tadpole Gasket, Tadpole Seal and Tadpole Gasket Tape

The same general bulb-and-tail sealing design may be described as a tadpole gasket, tadpole seal, tadpole tape, or tadpole gasket tape depending on the supplier, industry, or application.

For engineering and purchasing purposes, the important factors are the profile, core, cover material, reinforcement, attachment method, and operating conditions. BSTFLEX can manufacture the product according to the terminology and specifications used in customer drawings and equipment documentation.

How to Select an Inconel Tadpole Seal

Selecting the correct high temperature tadpole seal requires more than choosing a material based only on its maximum temperature. The finished gasket must match the mechanical and dimensional conditions of the equipment.

1. Measure the sealing gap: Determine the available space before and after the door or panel is closed.
2. Select the bulb diameter: The bulb should provide the required compression without excessive deformation.
3. Check surface conditions: Identify whether rubbing, abrasion, vibration, or repeated movement is present.
4. Specify thermal exposure: Consider normal operating temperature, peak temperature, thermal cycling, and atmosphere.
5. Define the mounting method: Confirm how the tail will be attached to the door, frame, or panel.
6. Choose the reinforcement: An Inconel stocking can be considered where additional surface protection is required.

Replacement and OEM Tadpole Gaskets

BSTFLEX supplies custom tadpole gaskets for both new equipment and replacement applications. If the original gasket is no longer available, the replacement can be developed from dimensions, drawings, photographs with measurements, or a physical sample.

For OEM projects, the gasket profile can be integrated into the equipment design from the beginning. For maintenance applications, the focus can be placed on matching the existing sealing gap, mounting arrangement, and compression characteristics.

Frequently Asked Questions

What is an Inconel stocking tadpole gasket?

An Inconel stocking tadpole gasket is a bulb-and-tail high temperature gasket reinforced with an Inconel wire stocking. In this construction, the Inconel stocking surrounds a ceramic fabric-covered ceramic core to provide both thermal sealing and additional mechanical protection.

Why is Inconel used on a tadpole gasket?

Inconel stocking can provide additional resistance to mechanical wear and surface abrasion. It is particularly useful where the gasket may rub against metal components or experience physical handling during repeated equipment operation.

What is the role of the ceramic core?

The ceramic core forms the rounded sealing bulb and provides the compressible body of the gasket. Its dimensions and construction influence the gasket's compression characteristics.

Where can this Inconel tadpole seal be used?

Typical applications include furnace doors, industrial ovens, kiln doors, thermal processing equipment, high temperature chambers, refractory equipment, inspection panels, and other thermal enclosures.

Can the Inconel stocking gasket be customized?

Yes. BSTFLEX can customize the bulb diameter, tail dimensions, length, ceramic fabric construction, ceramic core, Inconel stocking, profile geometry, and mounting configuration according to the application.

Can you manufacture a replacement gasket from a sample?

Yes. An existing gasket sample, drawing, dimensional specification, or application information can be used to develop a replacement or equivalent custom configuration.

What temperature can this tadpole gasket withstand?

The temperature capability depends on the complete material construction and operating environment. The ceramic fabric, ceramic core, Inconel stocking, sewing materials, compression level, atmosphere, and exposure duration should be evaluated together when establishing the appropriate service temperature.

Request a Custom Inconel Tadpole Gasket

If your equipment requires an Inconel tadpole gasket with a ceramic fabric cover and ceramic core, BSTFLEX can develop a custom sealing configuration around your equipment dimensions and operating conditions.

When requesting a quotation, provide the required bulb diameter, tail dimensions, gasket length, installation method, operating temperature, equipment type, and any available drawing or sample information.

Contact BSTFLEX for a custom Inconel stocking ceramic tadpole gasket for high temperature industrial sealing applications.
