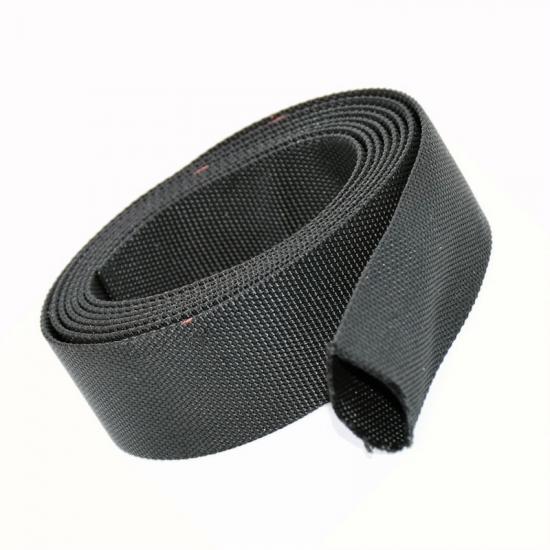

Nylon hose sleeve is a durable abrasion protection solution designed for hydraulic hoses, industrial lines, and cable bundles exposed to constant rubbing, vibration, dragging, and mechanical contact. It helps reduce outer cover wear, extend hose service life, and improve equipment reliability in demanding operating environments.
This nylon hydraulic hose sleeve is available in Nylon 6 and Nylon 66 constructions, allowing buyers to choose the right balance of flexibility, toughness, abrasion resistance, and long-term performance. Whether the application requires a cost-effective textile sleeve for standard hose protection or a more robust sleeve structure for harsher duty cycles, this nylon protective hose sleeve provides a practical and reliable answer.
Suitable for mining, construction, agriculture, industrial equipment, and hose assembly applications, this nylon textile sleeve is available in a flat width range from 10 mm to 500 mm. Standard color is black, with custom colors available for OEM identification and special production requirements.
In many hydraulic systems, hoses fail early not because of pressure limits, but because the outer cover is gradually worn down by repeated contact with machine frames, brackets, neighboring hoses, sharp edges, or moving structures. Once the outer layer is damaged, the reinforcement underneath becomes more vulnerable, increasing maintenance frequency and risk of premature hose replacement.
A nylon protective sleeve creates a sacrificial barrier between the hose and the working environment. Instead of allowing the hose cover to absorb constant wear, the sleeve takes the external abrasion and helps preserve the hose underneath. This makes nylon sleeve products especially valuable for high-movement hose routing, mobile machinery, and industrial equipment exposed to vibration and friction.
Compared with many general-purpose wraps, nylon sleeve structures are valued for their flexibility, mechanical toughness, and efficient installation performance. They are well suited for OEM hose assemblies, service replacement programs, and aftermarket hose protection upgrades.
This product can be manufactured using Nylon 6 or Nylon 66, giving buyers more control over performance level, durability target, and cost positioning.
| Comparison Item | Nylon 6 | Nylon 66 |
|---|---|---|
| General Positioning | Balanced and cost-efficient hose protection material | Higher-performance grade for tougher duty conditions |
| Flexibility | Excellent flexibility for moving hose paths | Strong structure with reliable routing stability |
| Abrasion Resistance | Very good for standard industrial wear protection | Preferred for more severe abrasion conditions |
| Dimensional Stability | Good all-around performance | Often selected for more demanding long-term stability needs |
| Recommended Use | General hydraulic hose protection and cost-sensitive OEM programs | Heavy-duty equipment and premium abrasion protection programs |
For many customers, Nylon 6 is a very practical option for standard abrasion protection. For harsher working conditions or higher-grade customer requirements, Nylon 66 offers a stronger upgrade path.
| Product Name | Nylon Hose Sleeve Hose Guard |
| Material Options | Nylon 6, Nylon 66 |
| Main Function | Abrasion protection |
| Structure | Braided / woven nylon protective sleeve |
| Flat Width Range | 10 mm to 500 mm |
| Standard Color | Black |
| Custom Colors | Available on request |
| Installation | Slip-on |
| Certification | MSHA |
| Typical Applications | Mining, construction, agriculture, industrial machinery, hydraulic hose assemblies |
This nylon textile sleeve is especially suitable for abrasion-dominant applications where mechanical wear is the main concern rather than direct flame or extreme heat.
If the main risk is hose rubbing, dragging, vibration, or repeated contact with equipment surfaces, nylon hose sleeve is usually the correct protection direction. If the application is near exhaust systems, molten splash, or direct flame, a dedicated fire sleeve or high-temperature protection sleeve should be selected instead.
For standard-duty industrial use and cost-sensitive programs, Nylon 6 is often a very efficient choice. For buyers needing a stronger premium-grade nylon protective sleeve for more severe abrasion conditions, Nylon 66 is the better material route.
Need help choosing Nylon 6 or Nylon 66 for your hose protection application? Send your hose outside diameter, abrasion condition, installation requirement, and preferred color for recommendation.
Nylon hose sleeve is used to protect hydraulic hoses, industrial hoses, and cable bundles from abrasion, rubbing, dragging, and vibration-related surface damage.
Nylon 6 is often selected for balanced flexibility and cost efficiency, while Nylon 66 is generally preferred for more demanding duty where stronger abrasion performance and higher-grade durability are desired.
No. This product is primarily designed for abrasion protection. If the application involves direct flame, molten splash, or extreme radiant heat, a dedicated fire sleeve should be used.
Yes. The sleeve can be cut to the required length during installation or production processing.
The correct size is selected based on the hose outside diameter or bundle size. The sleeve should fit over the hose without excessive looseness or difficult installation.
Common industries include mining, construction, agriculture, industrial manufacturing, automation, and mobile hydraulic equipment service.
