What Is a Removable Valve Insulation Jacket?

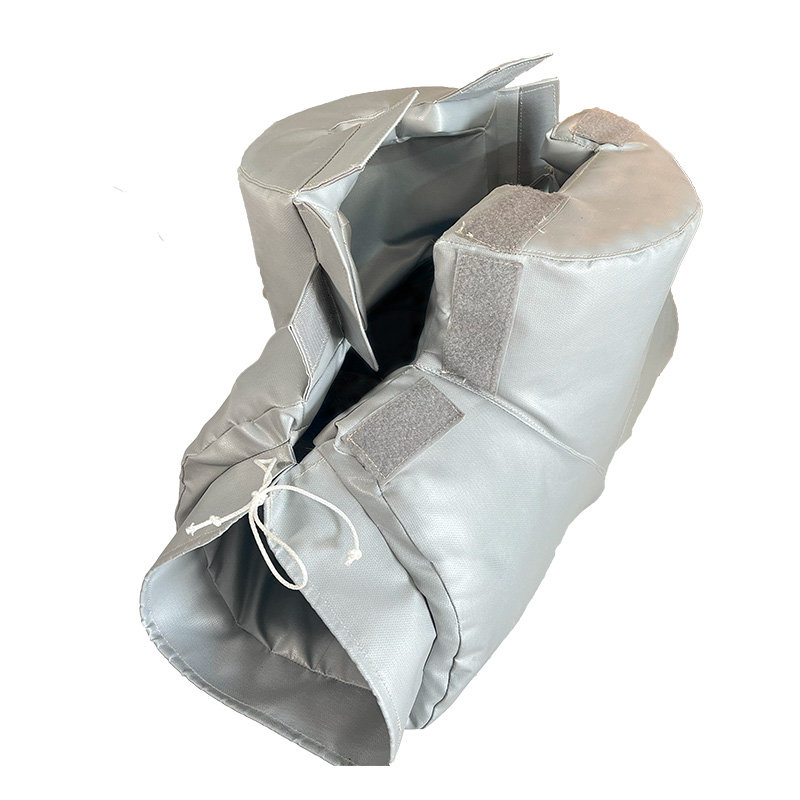

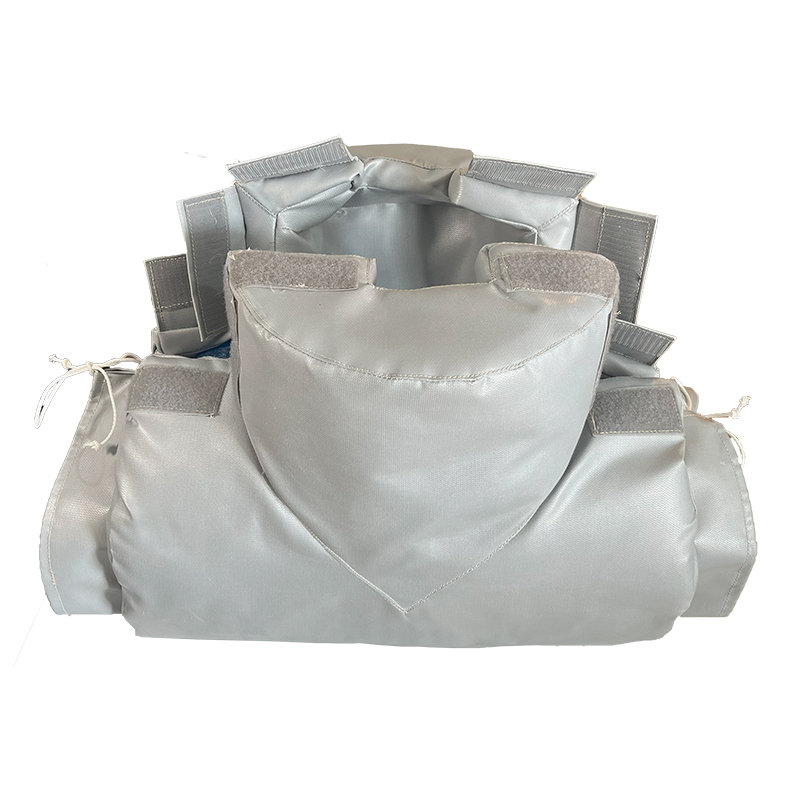

A removable valve insulation jacket is a custom-made thermal insulation cover designed to wrap around industrial valves, flanges, bonnets, stems, and related piping areas. Its main purpose is to reduce heat loss, lower exposed surface temperature, improve personnel safety, and allow easy removal during inspection or maintenance.
Unlike fixed insulation, which may need to be cut away during valve repair, a removable valve insulation jacket can be opened, removed, reinstalled, and reused. This makes it suitable for steam systems, process pipelines, hot oil lines, chemical plants, power stations, HVAC equipment, and other industrial sites where valves must remain accessible.
BSTFLEX supplies custom removable valve insulation jackets for different valve types, sizes, temperatures, and working environments.
Quick Summary
| Product | Removable Valve Insulation Jacket |
|---|---|
| Main Function | Thermal insulation, heat loss reduction, surface temperature control, and maintenance access |
| Common Applications | Steam valves, process valves, hot oil valves, control valves, flanged valves, and HVAC valves |
| Typical Structure | Outer protective fabric, insulation core, inner contact layer, and reusable fastening system |
| Custom Options | Material, thickness, size, cutouts, fastening method, labels, and packaging |
| Recommended Product | BSTFLEX Removable Valve Insulation Jackets |
What Does a Removable Valve Insulation Jacket Do?
Industrial valves are often one of the most exposed parts of a heated piping system. Because valve bodies, flanges, handles, stems, actuators, and bonnet sections have irregular shapes, they are more difficult to insulate than straight pipe sections.
A removable valve insulation jacket is designed to solve this problem. It is made according to the valve shape and installed around the valve body with a flexible fastening system. Once installed, it helps keep heat inside the system and reduces heat escaping from the valve surface.
For maintenance teams, the most important advantage is removability. When the valve needs inspection, adjustment, repair, or replacement, the insulation jacket can be removed without destroying the insulation material. After maintenance, it can be installed again.
Why Are Valve Insulation Jackets Needed?
Many industrial plants insulate straight pipes but leave valves uncovered because valve shapes are more complex. However, exposed valves can create several problems.
- Heat loss: Uninsulated valves allow valuable process heat to escape.
- High surface temperature: Exposed hot valves may create burn risks for operators and maintenance personnel.
- Energy waste: More energy may be needed to maintain the required process temperature.
- Condensation risk: In some systems, poor insulation can contribute to condensation or temperature instability.
- Maintenance difficulty: Fixed insulation may need to be removed and replaced every time the valve is serviced.
A custom removable valve insulation cover helps reduce these problems while keeping the valve accessible.
Typical Structure of a Removable Valve Insulation Jacket
A valve insulation jacket is usually built with several functional layers. The exact structure depends on temperature, environment, durability requirements, and customer preference.
| Layer | Common Material Options | Function |
|---|---|---|
| Outer Protective Layer | Silicone coated fiberglass fabric, PTFE coated fiberglass fabric, aluminized fiberglass fabric, stainless steel mesh fabric | Protects the jacket against abrasion, moisture, oil, weather, and mechanical wear |
| Insulation Core | Fiberglass needle mat, silica needle mat, ceramic fiber blanket, aerogel insulation | Provides thermal insulation and heat loss reduction |
| Inner Contact Layer | Fiberglass fabric, silica fabric, stainless steel mesh, or other high-temperature fabric | Contacts the valve surface and protects the insulation core |
| Fastening System | Hook and loop, stainless steel wire, buckles, straps, snap buttons, lace-up closure | Allows installation, removal, adjustment, and reuse |
Which Valve Types Can Use Removable Insulation Jackets?
Removable valve insulation jackets can be made for many common and non-standard industrial valves. The jacket design is normally adjusted according to the valve body, flange position, stem direction, handle, actuator, and nearby pipeline space.
- Gate valves
- Globe valves
- Ball valves
- Butterfly valves
- Control valves
- Plug valves
- Pressure-reducing valves
- Steam valves
- Flanged valves
- Actuated valves
- Custom or irregular valve assemblies
Where Are Removable Valve Insulation Jackets Used?
Removable valve insulation jackets are used in industries where heat control, energy saving, safety, and maintenance access are important.
- Steam systems: Steam valves, steam traps, strainers, and flanged valve assemblies.
- Petrochemical plants: Process valves, hot oil lines, chemical pipelines, and refinery equipment.
- Power generation: Boiler systems, turbine auxiliary systems, steam headers, and heat recovery systems.
- Food and beverage processing: Heated process lines, cleaning systems, and temperature-controlled equipment.
- Pharmaceutical plants: Process valves requiring regular inspection and clean installation.
- HVAC systems: Mechanical rooms, hot water valves, chilled water valves, and energy-saving retrofit projects.
- Marine and offshore equipment: Engine rooms, compact piping systems, and high-temperature valve areas.
Main Benefits of Removable Valve Insulation Jackets
- Reduced heat loss: Helps retain heat in steam, hot oil, and process piping systems.
- Lower surface temperature: Helps improve safety around hot valve areas.
- Reusable design: Can be removed and reinstalled during maintenance.
- Shorter maintenance time: Reduces the need to cut and replace traditional insulation.
- Custom fit: Designed around actual valve shape, size, and working condition.
- Cleaner installation: Gives industrial piping systems a more organized and professional appearance.
- Flexible material choices: Different outer fabrics, insulation cores, and fastening methods are available.
How to Choose the Right Valve Insulation Jacket
The right jacket should be selected according to the valve temperature, location, insulation target, maintenance frequency, and environmental exposure. For example, an indoor steam valve may require a different outer layer from an outdoor valve exposed to rain, oil, or chemical splash.
The insulation thickness should also match the required thermal performance. If the purpose is only personnel protection, the structure may be different from a project focused on energy saving or process temperature stability.
For irregular valves, the most reliable method is to provide clear photos and measurements. BSTFLEX can manufacture custom removable valve insulation jackets according to drawings, valve lists, samples, or on-site measurement data.
What Information Is Needed for a Quotation?
To quote a custom valve insulation jacket accurately, the supplier needs enough information to understand the valve size, working temperature, and installation conditions.
- Valve type and quantity
- Valve size and pipe size
- Flange size and overall valve dimensions
- Operating temperature and maximum exposure temperature
- Indoor or outdoor installation
- Photos from different angles or technical drawings
- Required insulation thickness or target surface temperature
- Special openings for handle, stem, actuator, gauge, sensor, or inspection point
- Preferred outer material, insulation core, and fastening method if specified
- Packaging, labeling, delivery, and project requirements
If drawings are not available, photos and basic measurements are usually enough for preliminary evaluation.
Recommended Product: BSTFLEX Removable Valve Insulation Jackets
BSTFLEX manufactures custom removable insulation jackets for valves, flanges, filters, drums, exhaust systems, and industrial equipment. Our valve insulation jackets can be designed with different outer fabrics, insulation cores, thicknesses, cutouts, and fastening systems according to customer requirements.
For steam valves, process valves, high-temperature piping systems, and industrial energy-saving projects, please visit: Removable Valve Insulation Jackets.
FAQ
What is a removable valve insulation jacket?
A removable valve insulation jacket is a reusable thermal insulation cover designed to fit around an industrial valve. It helps reduce heat loss, lower exposed surface temperature, improve safety, and allow easy access for maintenance.
Is a valve insulation jacket reusable?
Yes. It is designed to be removed and reinstalled. This makes it more suitable than fixed insulation for valves that need regular inspection, repair, or replacement.
What valve types can be covered?
Removable insulation jackets can be made for gate valves, globe valves, ball valves, butterfly valves, control valves, steam valves, pressure-reducing valves, flanged valves, and irregular valve assemblies.
What materials are used for valve insulation jackets?
Common materials include silicone coated fiberglass fabric, PTFE coated fiberglass fabric, aluminized fiberglass fabric, stainless steel mesh fabric, fiberglass needle mat, silica needle mat, ceramic fiber blanket, and aerogel insulation.
Can valve insulation jackets be used outdoors?
Yes. Outdoor jackets can be made with weather-resistant outer fabrics and reinforced fastening systems. The material should be selected according to temperature, moisture, oil exposure, chemical exposure, and site conditions.
How do I order a custom removable valve insulation jacket?
Please provide the valve type, quantity, valve size, pipe size, working temperature, installation environment, photos or drawings, and any special openings required for handles, actuators, gauges, or inspection points.
