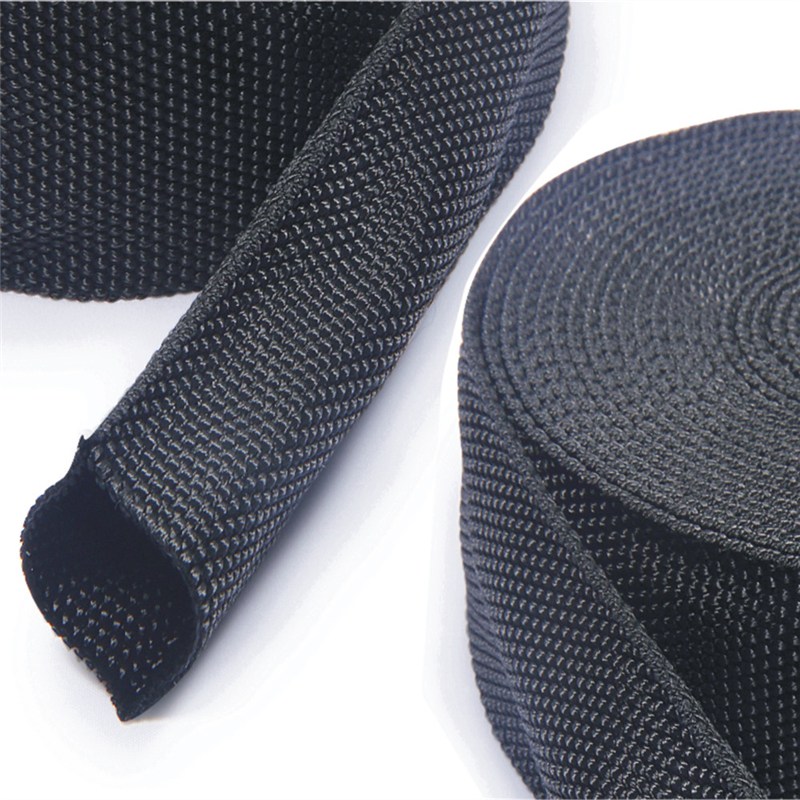

Hydraulic Hose Sleeve: How to Choose the Right Hose Protection Sleeve for Abrasion, Heat, and Safety

Hydraulic hose sleeve products are used to protect hydraulic lines from abrasion, heat exposure, flame, bundling damage, and hose failure risks in demanding industrial environments. Choosing the right hydraulic hose protection sleeve helps extend hose service life, improve equipment reliability, reduce maintenance costs, and improve operator safety in construction, mining, agriculture, steel, forestry, and heavy equipment applications.

A well-designed hydraulic hose sleeve is more than a simple cover. It serves as a functional barrier between the hose and the working environment. In real-world operating conditions, hydraulic hoses are exposed to repeated rubbing, vibration, debris, oil contamination, elevated temperatures, and confined routing around metal edges or moving assemblies. Without proper hose protection, premature wear can lead to leaks, downtime, expensive maintenance, and safety hazards.

Modern hydraulic hose protection sleeve solutions are available in different materials and constructions, each designed for a specific type of risk. Some sleeves are optimized for high abrasion resistance. Others focus on heat protection, flame resistance, burst containment, or easy retrofit installation. The correct solution depends on hose routing, working temperature, installation method, industry requirements, and the level of mechanical abuse the hose will face during operation.

Main Functions of a Hydraulic Hose Sleeve

Different sleeve constructions perform different protective roles. A good selection process starts with understanding what type of protection is actually needed.

• Abrasion protection: reduces damage caused by rubbing against machine parts, clamps, brackets, neighboring hoses, and rough surfaces.
• Heat protection: helps reduce thermal exposure when hoses are routed near radiant heat or hot equipment components.
• Flame resistance: helps protect hoses in applications exposed to sparks, molten splash, or intermittent flame contact.
• Burst safety: certain sleeve designs are used to contain or redirect hydraulic fluid spray in the event of hose failure.
• Bundling and organization: sleeves can keep multiple hoses together, reduce tangling, and improve routing appearance.
• Easy service and retrofit: split or Velcro wrap-around constructions simplify installation without disconnecting the hose assembly.

How to Choose the Right Hydraulic Hose Protection Sleeve

The correct sleeve should be selected according to the actual working condition rather than by appearance alone. Buyers often make the mistake of choosing only by material name, but the more effective approach is to evaluate the operating risk first.

Common Hydraulic Hose Sleeve Solutions

1. Polypropylene Hose Protective Sleeve

For buyers looking for a lightweight and cost-effective abrasion solution, Polypropylene Hose Protective Sleeve is a practical option for hose bundling, hydraulic line protection, and mechanical wear reduction. It is suitable for industrial, automotive, and hydraulic applications where flexibility and everyday abrasion resistance are important.

2. Kevlar Ceramic Fiber Hose Protection Sleeve

In harsher environments involving both heat and abrasion, Kevlar Ceramic Fiber Hose Protection Sleeve provides a stronger high-performance option. This type of sleeve is well suited for demanding industrial conditions where elevated temperatures and external wear act together on hose assemblies.

3. Braided Aramid Sleeve

For high-strength mechanical protection, Braided Aramid Sleeve is a strong choice. Aramid fiber constructions are designed for hydraulic hoses exposed to continuous movement, vibration, and repeated contact with hard surfaces. This makes them valuable in heavy-duty mobile and industrial systems.

4. Knit Fire Sleeve for Hydraulic Hose

Where heat and flame resistance are critical, High Temperature Protection Knit Fire Sleeve for Hydraulic Hose offers thermal insulation and flame shielding. It is suitable for steel mills, foundries, off-road equipment, and hose routing near high-temperature zones where standard abrasion sleeves are not enough.

5. Velcro Silicone Fiberglass Hose Sleeve

For retrofit installations and service-friendly protection, Velcro Silicone Fiberglass Hose Sleeve is highly effective. Its Velcro closure makes installation easier on existing hose assemblies without disconnecting fittings. This style is useful in industrial maintenance, automotive, marine, and other applications where fast installation matters.

6. Hydraulic Hose Protection Polyester Protective Sleeve

Buyers needing a flexible general-purpose sleeve can consider Hydraulic Hose Protection Polyester Protective Sleeve. Polyester sleeves are commonly used to extend hose life in construction, agriculture, automotive, and manufacturing environments where abrasion and surface wear are recurring problems.

7. Ballistic Nylon Hose Wrap Sleeve

When a heavy-duty wrap-around solution is required, Ballistic Nylon Hose Wrap Sleeve provides excellent abrasion resistance and secure wrap protection. It is especially useful where a nylon hose sleeve or hose wrap sleeve is needed for field retrofit and fast installation.

8. Stainless Steel Spring Guard Hose Protector

For applications where hoses need added anti-kink, anti-crush, and routing support, Stainless Steel Spring Guard Hose Protector is another important protection solution. It is particularly useful in mobile equipment, industrial systems, and marine applications where hose routing is exposed to repeated flexing and contact.

Abrasion Protection vs Heat Protection vs Retrofit Protection

One of the most common sourcing mistakes is using one sleeve type for every hose location. In practice, different hose routes on the same machine often need different protection methods.

For example, a machine arm or boom section may require a high abrasion solution such as Braided Aramid Sleeve, Ballistic Nylon Hose Wrap Sleeve, or Polypropylene Hose Protective Sleeve. A hose routed near high heat may require Knit Fire Sleeve for Hydraulic Hose or Velcro Silicone Fiberglass Hose Sleeve. For service situations where the hose is already installed, a wrap-around option such as Ballistic Nylon Hose Wrap Sleeve or Velcro Silicone Fiberglass Hose Sleeve is usually more efficient.

Industries That Use Hydraulic Hose Protection Sleeves

Hydraulic hose protection sleeves are widely used across industries where hose reliability, maintenance reduction, and safer operation matter.

• Construction machinery
• Mining equipment
• Agricultural equipment
• Forestry machinery
• Steel plants and foundries
• Marine and offshore systems
• Material handling equipment
• Industrial hydraulic power units
• Mobile service and repair operations

In these sectors, a properly selected hydraulic hose protection sleeve directly affects hose replacement cycles, maintenance costs, and long-term equipment uptime.

When to Use a Velcro Hose Sleeve or Wrap Around Hose Sleeve

A wrap-around solution is ideal when the hose assembly is already installed and removing fittings is not practical. Products such as Velcro Silicone Fiberglass Hose Sleeve and Ballistic Nylon Hose Wrap Sleeve are excellent for retrofit protection, maintenance upgrades, and field service.

These styles simplify installation and are especially useful for larger hose bundles or difficult routing positions where over-the-end installation is too slow or impractical.

What Buyers Should Confirm Before Ordering

Before choosing a hydraulic hose sleeve, buyers should confirm the following:

• Outside diameter of the hose or hose bundle
• Operating temperature range
• Main risk factor: abrasion, heat, flame, or routing damage
• Need for split, wrap-around, or closed construction
• Expected flexibility and bend radius
• Application industry and environmental exposure
• Color, marking, and custom manufacturing requirements

A sleeve that is technically correct but too rigid, too loose, or hard to install can still create problems during production and maintenance. Good product selection must balance protection performance and real installation needs.

Frequently Asked Questions

What is a hydraulic hose sleeve used for?

A hydraulic hose sleeve is used to protect hydraulic hoses from abrasion, heat, flame, rubbing damage, and environmental wear in industrial and mobile equipment applications.

What is the best material for abrasion resistant hose sleeve applications?

It depends on the severity of use. Polypropylene, polyester, nylon, and aramid-based sleeve constructions are common options for abrasion resistance, while heavier-duty applications may need more robust wrap or braided protection.

When should I use a heat resistant hydraulic hose sleeve?

A heat resistant hydraulic hose sleeve should be used when hoses are installed near engines, exhaust areas, furnaces, hot piping, or any source of radiant or direct heat.

What is the benefit of a Velcro hose sleeve?

A Velcro hose sleeve allows fast installation over an existing hose assembly without disconnecting fittings. It is ideal for retrofit work, maintenance, and field service operations.

Can one hydraulic hose protection sleeve work for every application?

No. Different applications require different sleeve materials and constructions depending on abrasion level, temperature, flexibility, installation method, and environmental exposure.
