The Fiberglass Cover Stainless Steel Hollow Core Tadpole Gasket is a highly compressible thermal sealing profile designed for industrial oven doors, furnace access panels, ducts, dampers, thermal enclosures and other equipment requiring flexible sealing around uneven or changing gaps.

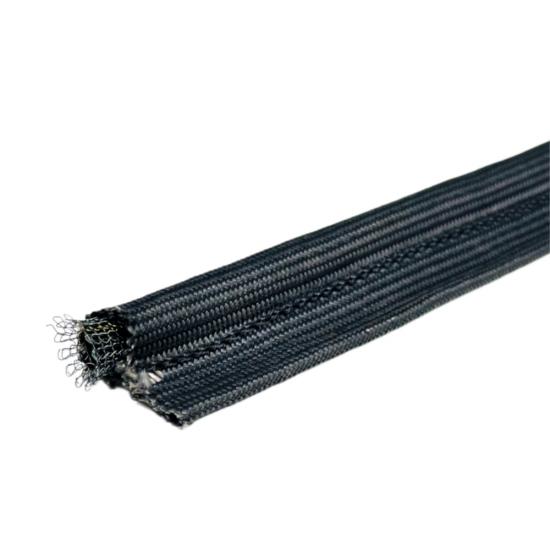

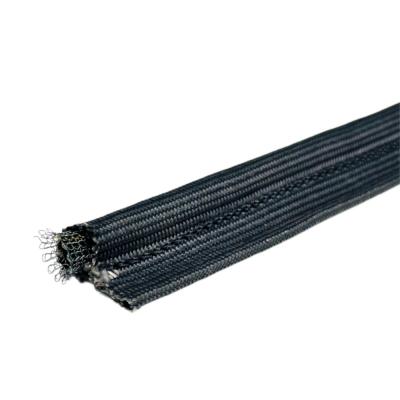

The gasket combines a woven fiberglass outer cover with a hollow stainless steel core. Unlike a solid mesh or fiberglass rope core, the hollow metallic structure provides a lighter and more compressible bulb that can deform readily under closing pressure while retaining useful resilience after the load is released.
Its bulb-and-tail construction separates the sealing and mounting functions. The hollow bulb forms the compression seal against the mating surface, while the flat fiberglass tail provides a convenient section for mechanical retention.
BSTFLEX manufactures fiberglass hollow core tadpole gaskets in customized bulb diameters, tail widths, lengths and profile configurations. Stainless steel hollow core construction can also be adjusted according to compression requirements, equipment geometry and OEM specifications.
order(moq):
1Payment:
EXW, FOB, CIF, DDP, FCA, etcshipping port:
Shanghai, NingboThe Fiberglass Cover Stainless Steel Hollow Core Tadpole Gasket is a flexible industrial sealing profile designed for oven doors, furnace access panels, ducts, dampers, thermal enclosures and other equipment where the gasket must compress easily and conform to irregular sealing surfaces.
This construction combines a woven fiberglass outer cover with a hollow stainless steel internal core. The hollow core gives the bulb a more compressible structure than many solid-core designs while retaining metallic reinforcement inside the sealing profile.
When the equipment door or panel closes, the hollow bulb compresses against the mating surface and adapts to variations in the sealing gap. The flat fiberglass tail remains outside the primary compression zone and provides the attachment area for mechanical installation.
BSTFLEX manufactures fiberglass hollow core tadpole gaskets in custom bulb diameters, tail widths, lengths and profile configurations for OEM production, maintenance and replacement sealing projects.
The distinguishing feature of this gasket is its hollow metallic bulb structure.
| Component | Construction | Function |
|---|---|---|
| Outer Cover | Woven Fiberglass Fabric | Provides the flexible external thermal textile layer |
| Internal Core | Stainless Steel Hollow Core | Creates a resilient and highly compressible bulb |
| Bulb | Fiberglass Wrapped Hollow Metal Core | Forms the primary compression sealing area |
| Tail | Fiberglass Fabric | Provides the mounting and retention section |
The hollow core changes the mechanical behavior of the tadpole bulb.
Instead of relying on a solid fiber rope or dense metallic mesh, the internal stainless steel structure contains an open central area. When closing pressure is applied, the bulb can collapse inward and reduce in height with comparatively low force.
This makes the gasket particularly useful where equipment doors cannot apply high closing pressure or where the seal must accommodate relatively large dimensional variations.
After the load is removed, the stainless steel core helps the bulb recover toward its original profile.
A hollow core is not simply a lighter version of a solid core. It provides a different compression characteristic.
Typical advantages include:
The external fiberglass fabric contains and protects the hollow metallic core while also forming the flat mounting tail.
Fiberglass textile is widely used in industrial sealing because it combines flexibility, dimensional stability and resistance to elevated temperatures.
The woven construction also allows the gasket to follow corners, door frames and other equipment geometry without introducing the rigidity associated with a completely metallic seal.
Comparable fiberglass cover and stainless steel hollow core constructions are commonly specified for service temperatures around 1000°F / 538°C.
The actual usable temperature of a BSTFLEX gasket depends on the exact fiberglass grade, stainless steel core construction, stitching material, compression condition and surrounding atmosphere.
For applications operating close to the upper thermal limit, continuous temperature, peak temperature and exposure duration should be confirmed before final material selection.
Hollow and solid metallic cores may use similar stainless steel materials, but their compression behavior is different.
| Property | Hollow Stainless Steel Core | Solid Stainless Steel Core |
|---|---|---|
| Compressibility | Higher | Lower to moderate |
| Closing Force | Generally lower | Generally higher |
| Bulb Firmness | Softer and more collapsible | More structured |
| Gap Accommodation | Very good | Good when correctly sized |
| Mechanical Support | Provided by hollow metal structure | Provided by denser metal structure |
| Typical Selection Reason | High compression with reduced closing force | Firm support and controlled compression |
Both constructions can provide soft compression, but they behave differently.
A fiberglass rope core is completely non-metallic and its firmness is largely determined by fiber density and rope construction.
A stainless steel hollow core uses a metallic structure that can collapse under pressure and recover after the load is removed.
The hollow stainless steel construction is therefore often selected where flexibility is required together with metallic resilience.
The choice between stainless steel hollow core and an Inconel core should be based on both mechanical and thermal requirements.
A hollow stainless steel core is particularly useful when compressibility and lower closing force are priorities.
An Inconel core may be selected where the metallic reinforcement itself must withstand more severe thermal conditions.
Core material, core density and core geometry should all be evaluated rather than selecting only by alloy name.
This construction is suitable for applications requiring a flexible and highly compressible thermal seal.
Large oven doors frequently require a gasket that can compensate for variations in door alignment and frame flatness.
A hollow core oven door tadpole gasket can compress significantly as the door closes, helping maintain contact around the perimeter without requiring excessive closing force.
This characteristic can be particularly useful on large doors, removable covers and equipment that experiences repeated thermal cycling.
Tadpole gaskets are also used around ducts, dampers and panel joints where the mating surfaces may not remain perfectly uniform.
The hollow bulb can conform to small dimensional changes while the mounting tail keeps the seal secured to the equipment structure.
For duct applications, the actual gas temperature, pressure, vibration and chemical environment should be reviewed before selecting the final construction.
One of the principal reasons to select a hollow bulb is its ability to accommodate an irregular mating surface.
When one section of the sealing gap is smaller than another, the bulb can compress by different amounts along the gasket length.
This helps maintain continuous sealing contact across equipment surfaces that are not perfectly flat or dimensionally uniform.
The internal metallic structure can be engineered in different ways according to the required compression characteristics.
Depending on the application, hollow stainless steel cores may be manufactured with different mesh densities or reinforced constructions to change:
BSTFLEX can evaluate the core construction according to equipment dimensions, sealing pressure and customer requirements.
Correct sizing is critical for a hollow core tadpole gasket.
The bulb should be large enough to maintain sealing contact but should not be excessively compressed when the door or panel reaches its closed position.
BSTFLEX can customize:
| Product Type | Fiberglass Hollow Core Tadpole Gasket |
|---|---|
| Outer Cover | Woven Fiberglass Fabric |
| Core | Stainless Steel Hollow Core |
| Typical Stainless Steel Option | 304 Stainless Steel |
| Profile | Compressible Bulb with Flat Tail |
| Bulb Diameter | Custom |
| Tail Width | Custom |
| Length | Custom |
| Temperature Capability | Depends on fiberglass grade, core construction and application conditions |
| Custom Core Construction | Available |
| OEM Manufacturing | Available according to drawing or sample |
A hollow core construction should be considered when the application requires one or more of the following:
BSTFLEX can manufacture new OEM profiles as well as replacement gaskets for existing ovens, furnaces, ducts and other thermal equipment.
For replacement projects, provide:
A physical gasket sample can also be used when the original dimensions or core construction are unknown.
A hollow core tadpole gasket is a bulb-and-tail sealing profile in which the bulb contains an open-center internal core. In this product, the core is made from stainless steel and the outer cover is woven fiberglass.
The main advantage is increased compressibility. The hollow structure can collapse more readily under closing pressure, allowing the gasket to accommodate sealing gaps without requiring the same force as many denser core constructions.
Yes. This construction uses a stainless steel hollow core. 304 stainless steel is a commonly used option, while alternative metallic core constructions can be evaluated for specific applications.
Generally, yes. A hollow core is designed to collapse more easily under compression, whereas a solid mesh core produces a firmer and more structured bulb.
Typical applications include industrial oven doors, furnace doors, ducts, dampers, covers, access panels and thermal enclosures.
Yes. Bulb diameter, metallic core construction and mesh density can be adjusted to achieve different compression characteristics.
Yes. Drawings, photographs, dimensions or physical samples can be used to develop replacement gasket profiles.
BSTFLEX manufactures fiberglass cover stainless steel hollow core tadpole gaskets for ovens, furnaces, ducts, dampers, thermal enclosures and industrial OEM equipment.
Send us the bulb diameter, tail width, overall profile dimensions, required length, operating temperature, sealing gap and quantity for quotation. Existing samples or technical drawings can also be used for custom development.
Explore additional tadpole gaskets and high temperature tadpole seals with fiberglass, silica, ceramic, coated textile, fiber-core and metal-core constructions.
