What Is the Best Hydraulic Hose Sleeve for Abrasion Protection?

The best hydraulic hose sleeve for abrasion protection depends on where and how the hose is being damaged. In many hydraulic systems, hose failure starts from the outside. Repeated rubbing against machine frames, brackets, neighboring hoses, clamps, and steel edges gradually wears down the outer cover. Once that surface protection is lost, the hose becomes more vulnerable to reinforcement damage, leakage, and early replacement.

That is why choosing the right hydraulic hose sleeve is not only about covering the hose. It is about matching the sleeve material and structure to the actual wear conditions. Some applications need a lightweight abrasion sleeve for general protection. Others require a more aggressive solution such as ballistic nylon, braided aramid, or a spring guard for high-contact routing points. The best product is the one that matches the damage pattern, movement level, and installation requirements of the hose.

Why Abrasion Is the Main Cause of Early Hose Failure

Hydraulic hoses work in harsh environments. In excavators, loaders, cranes, harvesters, and industrial machines, hoses move constantly with the equipment. This movement creates friction. Even a small amount of repeated rubbing can become a serious problem over time. In many cases, the hose itself is still pressure-capable, but the outer cover has already been damaged by contact with surrounding hardware.

Abrasion protection extends hose life by placing a sacrificial barrier between the hose and the source of wear. Instead of letting the hose outer cover absorb the damage, the sleeve takes the abuse first. This is why using the right abrasion resistant hose sleeve can reduce maintenance cost, improve system reliability, and lower the risk of unexpected downtime.

What Makes a Good Hydraulic Hose Sleeve for Abrasion Protection?

A good hose sleeve for abrasion protection should do more than simply fit over the hose. It should provide the right balance of wear resistance, flexibility, installation efficiency, and durability in the real operating environment.

• Strong resistance to rubbing and surface wear
• Enough flexibility to move with the hose
• Reliable performance in dirty, oily, and vibrating environments
• Easy installation for OEM assembly or retrofit work
• Correct material choice for the level of abrasion
• Compatibility with the hose routing condition and bend path

This is why there is no single best sleeve for every hydraulic system. The best option changes according to the severity of abrasion and the mechanical layout of the machine.

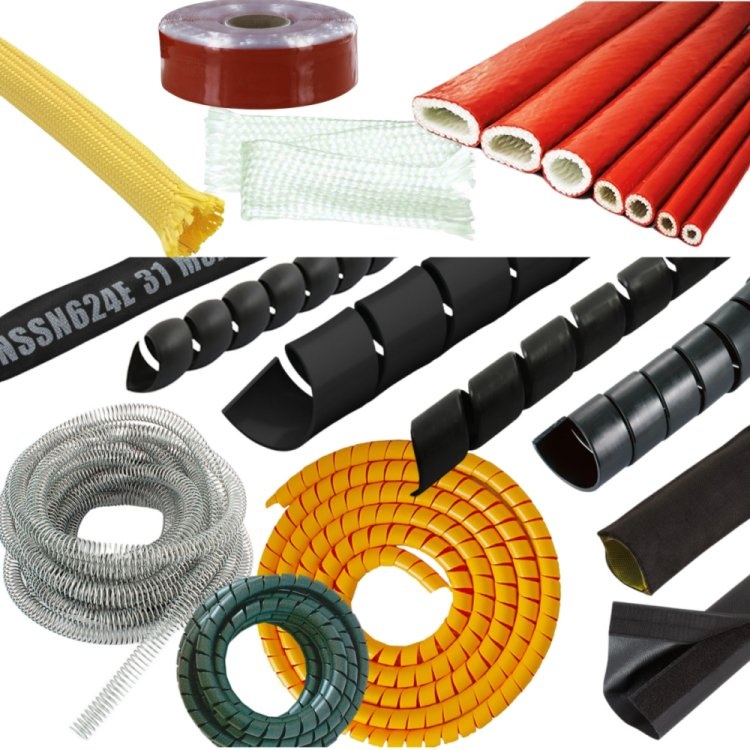

Best Hydraulic Hose Sleeve Options for Abrasion Protection

1. Nylon Sleeve for Standard to Heavy Abrasion

Nylon Sleeve Hose Guard is one of the most practical choices for abrasion protection in hydraulic applications. Nylon offers strong wear resistance, good flexibility, and dependable durability in high-movement hose routing. It performs well in mobile equipment, industrial machinery, and heavy-duty service environments where repeated rubbing is a common cause of hose damage.

Nylon sleeve is often one of the best choices when the main problem is external hose wear rather than extreme heat. It is especially suitable for buyers who want a strong abrasion solution with broad application compatibility.

2. Polyester Sleeve for General Industrial Wear Protection

Hydraulic Hose Protection Polyester Protective Sleeve is a good option for general-purpose abrasion control. It is lightweight, flexible, and suitable for large-volume hose protection where the abrasion level is moderate and the application requires an efficient, economical sleeve solution.

Polyester is often selected for standard hydraulic hose routing, cable bundling, and industrial line management where neat protection and basic wear control are important.

3. Braided Aramid Sleeve for Severe Abrasion

Braided Aramid Sleeve is a stronger solution for severe mechanical abrasion. If the hose is installed in a harsh wear zone with constant contact, vibration, and more aggressive surface damage, aramid is often a better choice than lighter textile sleeves. It offers higher structural durability and is well suited for demanding applications such as heavy equipment, mining machinery, and rugged industrial systems.

4. Ballistic Nylon Hose Wrap for Retrofit Abrasion Protection

Ballistic Nylon Hose Wrap Sleeve is an excellent choice when you need both heavy abrasion resistance and easy installation. Because it is a wrap-around design, it can be installed over existing hoses without disconnecting fittings. This makes it ideal for maintenance, retrofit projects, and field service situations where hose removal is not practical.

Ballistic nylon is often one of the best answers for high-abrasion applications where downtime and installation speed are critical.

5. Spring Guard for Bend-Point Abrasion and Routing Damage

Stainless Steel Spring Guard Hose Protector is not a standard textile sleeve, but in some applications it is the best abrasion solution. When hose damage occurs at the bend point, near fittings, or where the hose rubs against metal routing structures, a spring guard can outperform a soft sleeve because it adds structural protection against crushing, kinking, and localized contact wear.

If the hose repeatedly fails at one routing point rather than across its full length, spring guard may be the best protection choice.

Comparison Table: Which Abrasion Sleeve Is Best?

How to Decide Which Product Is Best

To choose the best hydraulic hose sleeve for abrasion protection, ask these questions:

• Is the wear general across the hose length, or concentrated at one bend point?
• Does the hose move constantly during machine operation?
• Is the sleeve being installed during assembly or as a retrofit?
• Is the abrasion moderate, heavy, or extreme?
• Does the hose also face heat, flame, or routing collapse?

For most buyers, nylon hose sleeve is the best all-around answer for abrasion protection. For harsher conditions, braided aramid sleeve or ballistic nylon hose wrap sleeve is often the better solution. For localized bend-point failure, spring guard hose protector may be the most effective choice.
