The Fiberglass Cover Stainless Steel Core Tadpole Gasket is a flexible high temperature sealing profile designed for industrial oven doors, furnace access panels, thermal enclosures, processing equipment and OEM sealing systems.

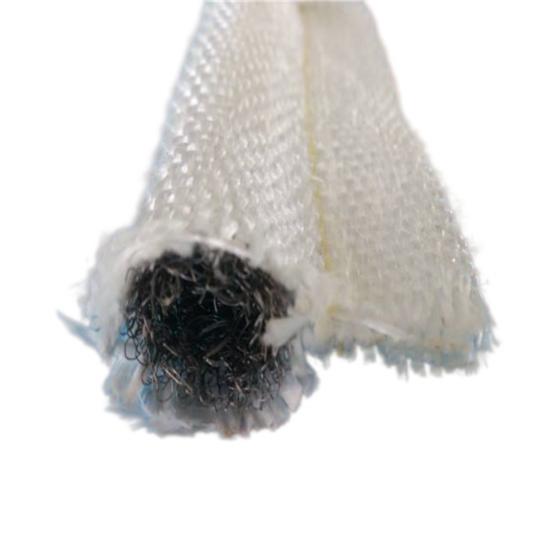

The gasket combines a woven fiberglass outer cover with a stainless steel internal core. The fiberglass cover provides thermal insulation, flexibility and abrasion resistance, while the stainless steel core supports the bulb profile and provides the resilience needed for repeated compression and release.
Its characteristic bulb-and-tail construction separates the sealing area from the mounting area. When the door or panel closes, the reinforced bulb compresses against the mating surface to help compensate for surface irregularities and sealing gaps. The flat tail can then be mechanically retained using clips, screws, rivets, clamping bars or equipment-specific mounting systems.
BSTFLEX manufactures fiberglass tadpole gaskets in custom bulb diameters, tail widths, overall lengths and stainless steel core constructions according to drawings, samples and application requirements. Different cover treatments and alternative core materials can also be developed for specialized thermal sealing conditions.
order(moq):
1Payment:
EXW, FOB, CIF, DDP, FCA, etcshipping port:
Shanghai, NingboThe Fiberglass Cover Stainless Steel Core Tadpole Gasket is an industrial thermal sealing profile designed for oven doors, furnace access panels, heated enclosures, processing equipment and OEM thermal systems. It combines a flexible woven fiberglass outer cover with a stainless steel internal core to create a resilient bulb-and-tail gasket for applications requiring repeated compression and reliable positioning.
The fiberglass cover forms the external thermal barrier and provides flexibility around straight sections, corners and slightly irregular sealing surfaces. Inside the bulb, the stainless steel core helps maintain the gasket profile and provides mechanical support during repeated opening and closing cycles.
BSTFLEX manufactures custom fiberglass tadpole gaskets in different bulb diameters, tail widths, overall lengths and stainless steel core constructions. Gaskets can be developed from customer drawings, existing samples or equipment dimensions for OEM and replacement applications.
The performance of this tadpole gasket comes from the interaction between the textile cover, metallic core and bulb-and-tail geometry.
| Component | Material | Main Function |
|---|---|---|
| Outer Cover | Woven Fiberglass Fabric | Thermal protection, flexibility and abrasion-resistant textile surface |
| Internal Core | Stainless Steel Core | Supports the bulb and improves resilience during repeated compression |
| Bulb | Fiberglass Wrapped Stainless Core | Creates the primary compression sealing area |
| Tail | Fiberglass Fabric | Provides the mounting and retention section |
A tadpole gasket uses a compressible bulb to create the seal and a flat tail to secure the gasket to the equipment.
When the oven door, furnace panel or enclosure closes, the mating surface compresses the bulb. The stainless steel core deforms within its designed compression range while helping the bulb retain structural integrity.
The outer fiberglass cover follows the movement of the core and creates a flexible textile contact surface between the equipment components.
When the door opens again, the stainless steel core assists the bulb in recovering toward its original shape. This makes the construction particularly suitable for equipment that is opened and closed repeatedly during operation or maintenance.
Core material has a major influence on tadpole gasket performance.
Compared with a soft fiber-only core, a stainless steel core provides greater mechanical reinforcement and profile stability. This can be valuable where the seal experiences frequent compression cycles, vibration, handling or mechanical contact.
Typical benefits of a stainless steel core include:
Woven fiberglass fabric is widely used in industrial thermal sealing because it combines flexibility, dimensional stability and useful resistance to elevated temperatures.
The textile construction allows the gasket to bend around equipment geometry and conform to minor irregularities while protecting the metallic core from direct contact with surrounding components.
For applications requiring other surface properties, fiberglass constructions may also be developed with additional treatments or coatings according to operating conditions.
Fiberglass cover and stainless steel core tadpole gaskets are commonly selected for moderate-to-high temperature industrial sealing applications.
Comparable industry constructions are published for service temperatures around 1000°F / 538°C. Actual allowable operating temperature depends on the exact fiberglass grade, stainless steel core construction, stitching material, compression condition and surrounding environment.
For continuous operation near the upper temperature range, BSTFLEX recommends confirming the actual service temperature, exposure time and installation conditions before final material selection.
The fiberglass stainless steel core tadpole gasket can be used in a wide range of thermal equipment, including:
Industrial oven doors experience repeated thermal cycling and frequent opening and closing. The seal must therefore provide both thermal capability and consistent mechanical compression.
A fiberglass oven door tadpole gasket with stainless steel core provides a reinforced bulb that can accommodate the closing pressure of the door while maintaining a defined sealing profile.
The mounting tail can be secured behind a retaining bar or fixed using other mechanical fastening methods according to the oven design.
Furnace access panels and equipment doors can develop variations in sealing gap due to fabrication tolerances, thermal expansion and repeated service.
The compressible bulb of a tadpole gasket helps compensate for these dimensional variations more effectively than a thin flat textile tape in many door-sealing applications.
Where service temperatures exceed the practical range of standard fiberglass constructions, alternative materials such as silica or ceramic fabric can be evaluated.
| Property | Stainless Steel Core | Fiberglass Rope Core |
|---|---|---|
| Mechanical Reinforcement | Higher | Lower |
| Bulb Firmness | More structured | Softer |
| Compression Recovery | Good for repeated cycling | Depends on rope density |
| Conformability | Controlled by core construction | Generally soft and flexible |
| Typical Application | Industrial doors and repeatedly cycled panels | General flexible thermal sealing |
Both stainless steel and Inconel can be used as metallic reinforcement inside a tadpole gasket, but they are not interchangeable in every application.
A stainless steel core is often selected where good mechanical reinforcement and thermal performance are required at a practical material cost.
An Inconel core may be preferred for more severe thermal environments or applications where the metallic core itself requires higher temperature capability.
The final choice should be based on continuous temperature, peak temperature, atmosphere, mechanical cycling and expected service life rather than material name alone.
Tadpole gaskets should be matched to the actual sealing gap and mounting arrangement rather than selected only by overall width.
BSTFLEX can customize:
| Product Type | High Temperature Tadpole Gasket |
|---|---|
| Outer Cover | Woven Fiberglass Fabric |
| Core | Stainless Steel Core |
| Profile | Bulb with Flat Mounting Tail |
| Temperature Range | Depends on fiberglass grade, core design and application conditions |
| Bulb Diameter | Custom |
| Tail Width | Custom |
| Length | Custom |
| Application | Ovens, furnaces, thermal doors, panels and industrial equipment |
| OEM Manufacturing | Available according to drawing or sample |
A replacement gasket often needs to match an existing equipment profile rather than a catalog size.
BSTFLEX can manufacture custom stainless steel core tadpole gaskets according to:
For special applications, alternative covers and cores can also be developed, including silica fabric, ceramic fabric, basalt fabric, aramid fabric, stainless steel mesh and Inconel mesh constructions.
For an accurate quotation, provide the following information whenever available:
It is a bulb-and-tail thermal gasket manufactured with a woven fiberglass outer cover surrounding a stainless steel internal core. The bulb provides the compression seal and the tail provides the mounting area.
The stainless steel core reinforces the gasket, supports the bulb shape and provides resilience during repeated compression and release cycles.
Typical applications include industrial oven doors, furnace access doors, thermal enclosures, heat treatment equipment, drying ovens, powder coating ovens and OEM heating systems.
Yes. BSTFLEX can manufacture different bulb diameters, tail widths and overall profiles according to the equipment sealing gap and installation design.
Yes. Inconel mesh can be selected for applications requiring a different metallic core performance. The correct material depends on temperature, atmosphere and mechanical requirements.
Yes. An existing gasket sample, cross-sectional drawing or detailed dimensions can be used to develop a replacement or OEM gasket profile.
BSTFLEX manufactures fiberglass cover stainless steel core tadpole gaskets for industrial ovens, furnaces, thermal processing equipment and OEM sealing systems.
Send us your gasket profile, bulb diameter, tail width, required length, operating temperature and quantity. If you are replacing an existing seal, photographs, drawings or physical samples can be used for product development and quotation.
For additional constructions, visit our Tadpole Gasket and Tadpole Seal product range .
