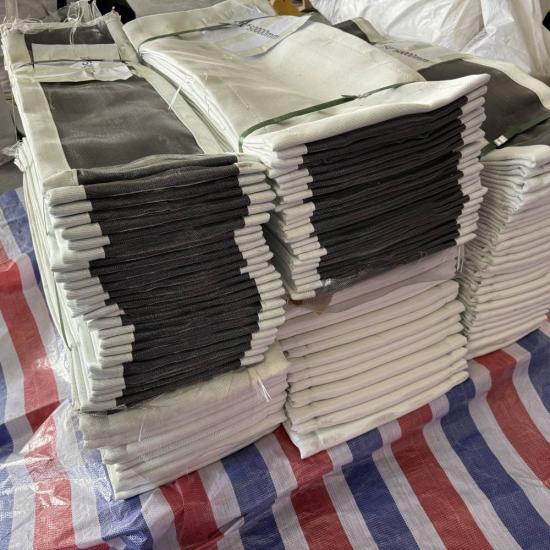

BSTFLEX Non Metallic Fabric Expansion Joint is a custom-engineered flexible connector designed for industrial ducting, hot-air, exhaust and flue-gas systems where thermal growth, vibration, equipment movement or installation misalignment must be accommodated without transferring excessive loads to adjoining ductwork and equipment.
Unlike rigid metallic components, a fabric expansion joint uses one or more flexible textile, coated fabric, sealing and insulation layers selected according to operating temperature, gas composition, pressure conditions, movement requirements and surrounding environment. The flexible element can accommodate axial, lateral and angular displacement while maintaining a controlled connection between two sections of ducting.
BSTFLEX manufactures round, rectangular, square and application-specific non metallic expansion joints for OEM equipment manufacturers, ducting contractors, power generation systems, cement plants, steel processing equipment, industrial furnaces, ventilation systems and other high-temperature process installations.
| Product | Non Metallic Fabric Expansion Joint |
| Alternative Names | Fabric Expansion Joint, Fabric Duct Expansion Joint, Composite Fabric Expansion Joint, Non Metallic Compensator |
| Construction | Single-layer or multi-layer flexible construction |
| Shapes | Round, rectangular, square and custom geometries |
| Movement | Axial, lateral, angular and combined movement |
| Typical Media | Hot air, exhaust gas, flue gas and industrial process gases |
| Materials | Selected according to temperature, media, chemical exposure, abrasion and mechanical requirements |
| Size | Custom manufactured to drawing or installation dimensions |
| Application | Industrial ducting, exhaust, furnace, boiler, fan and process-air systems |
A non metallic fabric expansion joint is a flexible connection installed between sections of industrial ductwork or equipment to compensate for movement that would otherwise create stress in the system. Thermal expansion is one of the most common causes of movement, but vibration, equipment displacement, fabrication tolerance and structural movement may also need to be controlled.

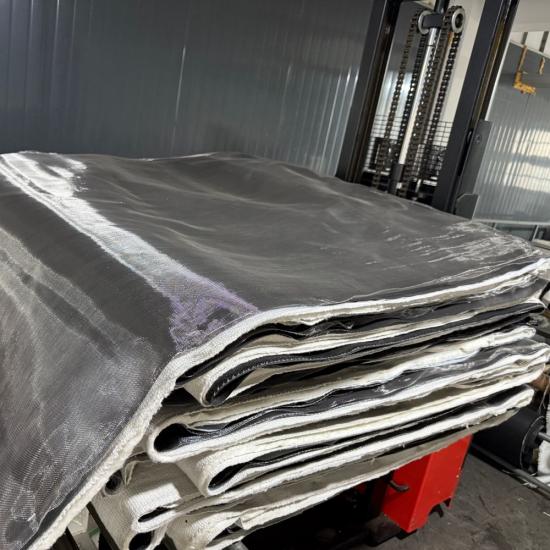

The flexible body is normally manufactured from engineered textile and coated-fabric layers rather than a formed metallic bellows. Depending on service conditions, the construction may incorporate a gas-sealing membrane, reinforcement fabric, thermal insulation and an inner protective layer.
This construction makes a fabric expansion joint particularly suitable for large duct cross-sections, hot gaseous media and applications requiring movement in more than one direction.
Industrial duct systems expand and contract as operating temperature changes. If this movement is completely restrained, thermal stress can be transferred into duct walls, flanges, fans, equipment connections and supporting structures.
A flexible fabric duct expansion joint creates a controlled movement zone between adjacent sections. As the duct expands, contracts or shifts, the flexible section changes geometry rather than forcing the entire displacement into rigid components.
Depending on the joint geometry and system design, the expansion joint can accommodate:
There is no single fabric construction suitable for every industrial expansion joint. A reliable design starts with the actual operating conditions.

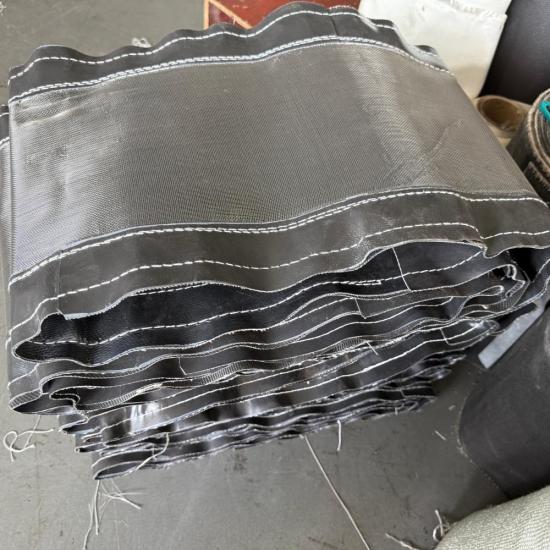

A multi-layer system may contain several functional layers, each performing a different task:
The gas-sealing layer helps contain the process medium and is selected according to temperature, gas composition, moisture, chemical exposure and pressure conditions. Depending on the application, coated fiberglass or fluoropolymer-based materials may be considered.
The reinforcement layer provides dimensional stability and mechanical support to the flexible element. Woven fiberglass and other technical textiles can be selected according to the required mechanical and thermal properties.
High-temperature systems may require an insulation layer to reduce the temperature reaching the outer sealing materials. Insulation thickness and material should be engineered according to gas temperature, external temperature limits and joint geometry.
Where the expansion joint is exposed to high gas velocity, particulate matter or abrasive media, an internal protective system or flow liner may be required to reduce direct impingement on the flexible element.
Material selection is one of the most important parts of non metallic expansion joint design. BSTFLEX works with a broad range of high temperature fabrics and coated technical textiles, allowing the flexible construction to be adapted to different industrial environments.
| Material Type | Typical Function | Selection Considerations |
|---|---|---|
| Fiberglass Fabric | Reinforcement and thermal-resistant textile layer | Temperature, weight, weave and mechanical strength |

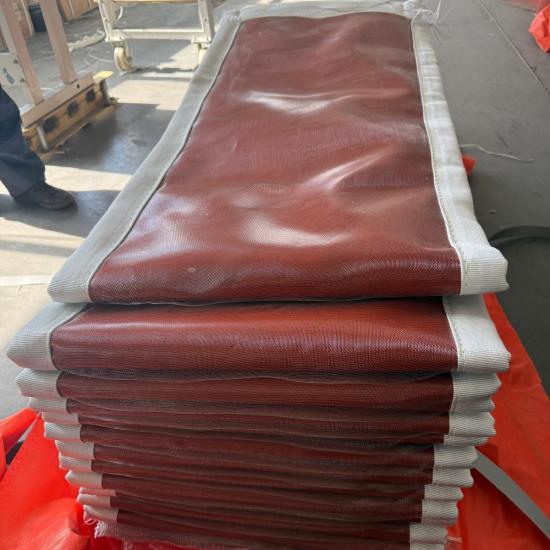

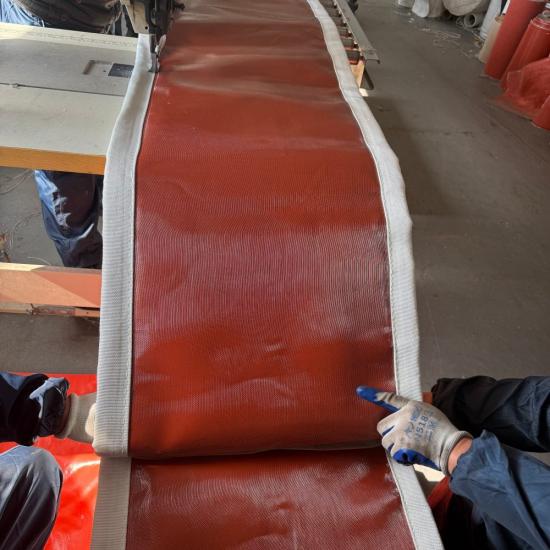

| Silicone Coated Fiberglass | Flexible outer or sealing layer | Temperature, weather resistance, flexibility and environment |
| PTFE Coated Fabric | Gas sealing and chemical-resistant layer | Chemical compatibility, temperature and process media |
| Silica Fabric | High-temperature thermal protection layer | Temperature exposure and insulation requirement |
| Insulation Materials | Reduction of temperature through the joint construction | Operating temperature and required external surface temperature |
| Metal Mesh or Internal Liner | Mechanical or flow protection where required | Gas velocity, abrasion, particles and installation geometry |
For particularly demanding thermal environments, BSTFLEX can evaluate high-silica textile solutions such as 96% high temperature silica fabric as part of the overall thermal protection system where technically appropriate.
The final material combination should always be determined from actual application data rather than temperature alone.
A high temperature fabric expansion joint is not defined by one universal maximum temperature. The permissible operating temperature depends on the complete joint construction, including the hot-face protection, insulation package, reinforcement fabric, gas seal membrane, external cover and the temperature distribution through those layers.
For this reason, BSTFLEX evaluates both process temperature and the temperature expected at individual layers of the expansion joint. This approach allows the materials to be selected for their actual operating environment rather than relying on a single generic temperature rating.
When requesting a high-temperature joint, provide the normal operating temperature, maximum or upset temperature, exposure duration and process medium wherever possible.
BSTFLEX manufactures expansion joints according to the shape and dimensions of the customer's ducting system.
A rectangular fabric expansion joint is commonly used on large industrial ductwork, boiler systems, air-handling equipment, furnace connections and flue-gas ducts. Corner geometry, movement distribution and attachment design require particular attention because stress is not distributed in the same way as on a circular joint.
Round and circular fabric expansion joints are suitable for cylindrical duct systems, fan connections, exhaust lines and process-air installations. Diameter, face-to-face length and movement requirements can be manufactured according to the installation.
Non-standard shapes, transitions and asymmetric configurations can be evaluated when standard round or rectangular joints cannot match existing equipment.
Different attachment arrangements can be supplied depending on the duct design and replacement requirements.
Belt-type fabric expansion joints use a flexible belt attached to mating metalwork and are suitable for many large industrial duct applications.
Flanged fabric expansion joints can be manufactured as complete assemblies where the flexible element, insulation components and supporting metalwork are supplied as an integrated unit.
For replacement projects, BSTFLEX can manufacture according to customer drawings, dimensional records or available sample information.
BSTFLEX non metallic fabric expansion joints can be engineered for a broad range of hot-air and process-gas ducting systems.
Fabric joints can be used in boiler ducting, flue-gas handling systems, fan connections and other large gas-transport ducts where thermal movement and vibration need to be isolated.
Cement production involves large ductwork exposed to heat, dust and continuous equipment movement. Expansion joints may be used around kiln-related ducting, process-air systems, fans and gas-handling equipment.
Furnace exhaust, hot-air ducts and process ventilation systems may require flexible connections capable of accommodating thermal growth while operating around demanding high-temperature equipment.
Where process gases contain corrosive constituents, joint materials should be selected according to chemical compatibility as well as temperature.
Fabric joints can compensate for expansion between heated equipment and downstream ductwork while helping isolate movement and vibration.
Flexible expansion joints can reduce the transmission of mechanical vibration between fans, blowers and rigid ducting.
High-temperature exhaust and hot-gas systems often require a flexible transition capable of accommodating repeated thermal cycles and installation movement.
| Design Factor | Fabric Expansion Joint | Metal Expansion Joint |
|---|---|---|
| Flexible Element | Technical fabric or composite textile construction | Formed metallic bellows |
| Typical System | Industrial ducting and gaseous-media systems | Pipe and process systems including higher-pressure service |
| Large Cross Sections | Well suited to large duct dimensions | Possible but design becomes more complex |
| Multidirectional Movement | Can accommodate axial, lateral and angular movement | Depends strongly on bellows configuration |
| Vibration Isolation | Good flexibility for fan and duct connections | Application dependent |
| Material Selection | Composite layers can be selected for thermal and chemical conditions | Determined mainly by metal alloy and bellows design |
The correct choice depends on pressure, temperature, process medium, duct geometry, required movement and applicable engineering standards. Fabric and metallic expansion joints should therefore not be treated as universally interchangeable products.
Selecting an expansion joint only by duct size or maximum temperature is not sufficient. Several operating parameters interact with each other and influence the appropriate construction.
The following information should be evaluated:
Providing this information allows the flexible element and supporting components to be selected around the real service conditions.
For faster engineering evaluation and quotation, send as much of the following information as available:
| Duct Size | Diameter or width × height |
| Joint Shape | Round, rectangular, square or custom |
| Installation Length | Face-to-face dimension |
| Operating Temperature | Normal continuous temperature |
| Maximum Temperature | Maximum or upset temperature and duration |
| Pressure | Normal and design pressure |
| Process Medium | Air, flue gas, exhaust gas or other process gas |
| Axial Movement | Compression and extension |
| Lateral Movement | Required offset movement |
| Angular Movement | Required angular displacement if applicable |
| Environment | Indoor, outdoor, chemical, dusty, wet or abrasive |
| Drawing | PDF, CAD drawing, dimensional sketch or existing joint details |
| Quantity | Prototype, replacement quantity or production requirement |
Industrial expansion joints are frequently project-specific components rather than standard catalogue parts. BSTFLEX supports customized manufacturing according to drawings, dimensional requirements and operating conditions.
Custom options may include:
Because BSTFLEX also works directly with thermal protection textiles and coated high-temperature fabrics, material construction can be evaluated as part of the expansion joint design instead of treating the flexible element as a generic component.
BSTFLEX focuses on engineered thermal protection and technical textile products for industrial applications. Our manufacturing capabilities cover high-temperature woven fabrics, coated fabrics, insulation materials and fabricated thermal components, providing a practical material base for custom fabric expansion joint projects.
A non metallic expansion joint is a flexible connection used primarily in ducting and gaseous-media systems to accommodate thermal expansion, vibration, misalignment and multidirectional movement. Its flexible element is normally manufactured from technical fabrics, coated textiles, insulation and other non-metallic materials selected according to the operating environment.
A fabric expansion joint uses a flexible textile or composite membrane, while a metallic expansion joint normally uses formed metal bellows. Fabric joints are widely used on large industrial ducts and gas-handling systems, while metallic bellows are common in piping and applications where system pressure or process requirements favor metallic construction.
Yes. Properly designed fabric expansion joints can accommodate axial, lateral and angular movement as well as combinations of these movements. The required movements must be provided during design so the joint geometry can be selected correctly.
There is no single temperature rating for every fabric expansion joint. Temperature capability depends on the flexible membrane, insulation package, hot-face protection, sealing material and overall joint construction. BSTFLEX selects the material system according to the normal operating temperature, maximum temperature and exposure conditions.
Depending on the application, materials may include fiberglass fabric, silicone-coated fiberglass, PTFE-coated fabric, silica fabric, insulation materials and metallic protective components. Each layer is selected according to its specific function.
Yes. Fabric expansion joints are widely applicable to industrial flue-gas and hot-gas ducting when the construction is engineered for the process temperature, chemical composition, moisture, pressure, gas velocity and movement requirements.
Yes. BSTFLEX manufactures rectangular, round, square and other custom configurations according to duct dimensions and installation requirements.
In many cases, yes. Dimensional measurements, photographs, operating conditions and information from the existing expansion joint can be used for an initial evaluation. A complete drawing or physical sample provides additional information when available.
The most useful information includes duct dimensions, joint shape, face-to-face length, operating and maximum temperature, pressure, process medium, axial movement, lateral movement, angular movement, gas velocity, chemical exposure, flange arrangement and required quantity. Drawings are strongly recommended where available.
If you are sourcing a replacement expansion joint or developing a new industrial duct system, send BSTFLEX your drawing and operating conditions. Our team can evaluate the required shape, dimensions, flexible materials, insulation construction and movement requirements for your application.
For quotation, please provide: duct dimensions, temperature, pressure, process medium, movement requirements, installation length, quantity and available drawings.
