Fabric Expansion Joints for Fans and Blowers: Inlet and Outlet Selection

Fabric expansion joints for fans and blowers connect the equipment to adjoining ductwork while accommodating specified movement and providing the required gas seal. Their flexible construction can reduce the transmission of mechanical vibration through the duct connection. However, the inlet and outlet must be assessed separately: matching a fan flange is only one part of selecting the joint.

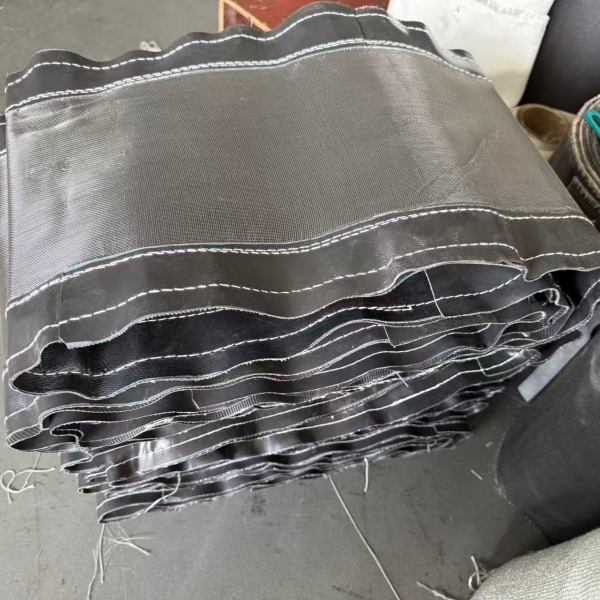

BSTFLEX manufactures non metallic fabric expansion joints for industrial gas ducts, including fan connections. For these applications, the specification needs to address local pressure, airflow, vibration, temperature and attachment geometry together.

Two Connections, Two Operating Conditions

A purchasing request for two flexible connections on one fan should identify which component belongs at the inlet and which belongs at the outlet. The positions may have different dimensions, pressure conditions, surrounding ductwork and movement requirements.

At the Fan Inlet

A fan inlet expansion joint may operate under suction. When the internal pressure is below ambient, the flexible element is pulled toward the duct interior. Its installed shape and internal clearance must allow for this pressure condition as well as the specified movement.

Record the inlet arrangement, including nearby elbows, dampers, filters and transitions. Confirm whether the joint handles clean air, dust-laden gas or a moist process stream. The word “inlet” does not define the temperature or chemical exposure.

At the Fan Outlet

A fan outlet expansion joint needs its own pressure and flow specification. The discharge region can have a non-uniform velocity profile, and nearby duct fittings can affect how the flow develops.

Do not automatically label every outlet joint positive-pressure service. A fan's pressure rise does not, by itself, establish the pressure relative to ambient at either connection. Provide the local normal and design pressure, with the sign, units and reference clearly stated.

Procurement rule: Use separate inlet and outlet records before deciding whether the two joints can share a material construction or part number.

Separate Thermal Movement, Equipment Vibration and Belt Flutter

These are different design inputs. Combining them into one entry labelled “vibration allowance” leaves important information unresolved.

Thermal movement

Ducting and connected equipment change position as they heat and cool. Specify axial compression, axial extension, lateral displacement and angular movement from an agreed installation reference.

Mechanical vibration

Repeated motion of the fan assembly can reach the connection. Provide measured amplitude, frequency, direction and measurement location where available. Fan speed alone does not describe the displacement that the flexible element must accommodate.

Pressure-driven flutter

The fabric can oscillate in response to pressure fluctuations or turbulent flow even when the adjoining equipment has limited movement. The resulting flexing must be considered separately from slow thermal expansion.

A flexible connection can reduce one path of vibration transmission; it does not correct an unbalanced impeller, damaged bearing, loose foundation or unsuitable fan operating condition. The fan and expansion joint require coordinated assessment when excessive vibration is present.

Why the Softest Belt Is Not Always the Best Fan Connector

A very compliant belt may accommodate movement readily but respond poorly to repeated aerodynamic excitation. At fan locations, the material construction must balance movement capability with resistance to flutter.

Depending on the duty, the design review may consider a different reinforced construction, a protective liner or changes to the joint geometry. Increasing fabric weight or thickness without checking the other requirements is not a complete solution.

For variable-speed equipment, submit the operating speed range and identify any speed or damper position associated with unusual motion. A condition that appears acceptable at one steady operating point may not represent startup, shutdown or reduced-load service.

Keep Vibration Isolation Separate from Noise Attenuation

Reducing structure-borne vibration is not the same as reducing airborne sound travelling through the duct. A flexible connection should not be purchased as a silencer unless its acoustic performance has been specifically designed and verified.

Noise can also escape through the flexible section. Where this matters, specify the acoustic requirement separately and have any treatment reviewed with the joint's thermal and movement requirements. Do not add an external sound blanket or cover without checking whether it changes heat dissipation or restricts movement.

Protect the Flexible Element Without Obstructing the Fan

A flow liner can shield the belt from direct gas exposure and help address turbulence-related flutter. Its attachment, orientation and clearance must be suitable for the connection.

The review should cover the complete movement envelope. A liner that clears the adjoining metalwork at shutdown may interfere when the duct compresses or moves sideways. Sharp edges or contact points can damage the belt regardless of its temperature rating.

For dusty service, include particle information and the proposed protection of the joint cavity. For an inlet connection, also consider the consequences of a loose component entering the downstream fan. Internal components must be secured according to the approved assembly design.

The Connector Must Fit the Airflow Layout, Not Just the Gap

Elbows, abrupt transitions and dampers close to a fan can create additional losses and non-uniform airflow. This is commonly described as system effect. It can affect fan performance, noise and vibration.

Installing a fabric expansion joint does not remove those aerodynamic problems. Show the nearby duct layout on the enquiry drawing rather than supplying only the two flange faces.

The flexible span required for movement and the duct length required for airflow development are separate design questions. Do not assume that making the connector longer provides the same performance as an appropriately configured straight duct. The fan supplier should review inlet and outlet geometry where installation space is restricted.

Match the Material to the Actual Fan Duty

A fan expansion joint is not automatically a heavily insulated high-temperature assembly. Conversely, a light ventilation connector should not be assumed suitable for hot or chemically aggressive process gas.

Clean-Air and Forced-Draft Connections

For a forced-draft fan, identify the air temperature at the specific joint, external exposure and operating pressure. Where the medium is clean and the temperature is moderate, a reinforced coated-fabric construction may be evaluated without assuming that a large insulation package is necessary.

An FD fan expansion joint still needs the specified sealing, movement and dynamic performance. Clean air does not remove the need to assess flutter or the attachment arrangement.

Induced-Draft and Process-Exhaust Connections

An ID fan expansion joint may be installed at different points in an exhaust-treatment system. State its position relative to dust collection, cooling and wet-treatment equipment. Do not infer the condition of the gas from the fan designation alone.

Hot gas may require a thermal package to protect the sealing layer. For that duty, refer to our high temperature fabric expansion joint guide. Moist or corrosive service instead requires particular attention to chemical compatibility, condensate and the temperature at the barrier material.

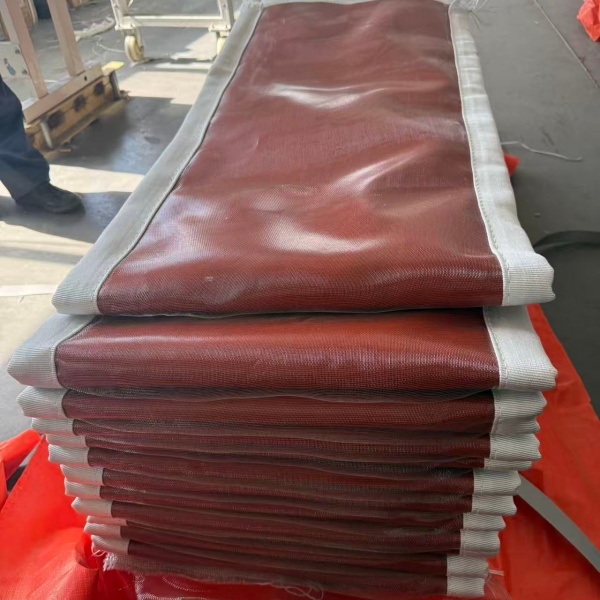

Fiberglass reinforcement, silicone-coated fabrics, PTFE-based barriers and silica textiles perform different functions. Our guide to fabric expansion joint materials explains why they should not be treated as interchangeable complete-joint specifications.

Blower Applications Outside Ordinary Duct Service

The term blower expansion joint does not establish a pressure rating. Confirm the equipment type and actual service before proposing a fabric design. Pressure, pulsation or process-containment requirements may call for another connection technology.

Any hazardous-service requirements must also be stated explicitly. Heat resistance alone does not establish suitability for flammable media, combustible dust or emergency smoke-exhaust duty.

Prepare an Inlet and Outlet Comparison Sheet

The following is an enquiry format, not a product rating table. Complete both columns from the fan and duct-system data. Mark missing information as unknown rather than copying a value from the opposite connection.

Support the Ductwork and Define the Installed Position

The fan casing and flexible belt should not be assumed to support the weight of adjoining ducts, silencers or other equipment. Confirm the intended support arrangement and allowable interface loads with the system designer.

Where the fan sits on vibration isolators, the connection must accommodate the specified relative movement between equipment and ductwork. Do not pull a short belt tight to compensate for an incorrectly positioned duct, or use the connection to force the fan casing into alignment.

Distinguish the installed distance between defined attachment planes from the developed width of the replacement fabric. The clamped areas and freely moving portion must be included in the approved drawing. Round and rectangular interfaces also need their own flange and corner details.

When Can the Same Construction Be Used on Both Sides?

A shared material construction can be considered when both duties fall within its verified operating limits. That does not necessarily mean the finished components are identical.

Different flange shapes, hole patterns, installed lengths, liner arrangements or movement requirements may still require separate drawings and part numbers. A purchasing decision to reduce spare-part variety should follow the engineering comparison, not precede it.

For repeat OEM orders, identify the inlet and outlet parts consistently on drawings, labels and packaging. This helps avoid fitting a dimensionally similar component at the wrong position during maintenance.

Record a Commissioning Baseline

During an authorized commissioning procedure, record the approved installation position, fan operating condition and any permitted external observations of the connections. Note whether unusual motion appears only at particular speeds or control settings.

Inspection or adjustment requiring hands-on access must follow the site's isolation and safe-work procedures. A stopped motor does not by itself remove pressure, stored heat or the possibility of airflow-driven rotation. Do not touch a fluttering belt or adjust clamps on an operating system.

For an existing joint with repeated damage, preserve the operating history and photographs before specifying another belt. The fabric expansion joint failure and inspection guide provides a separate framework for investigating that problem.

Request a Custom Fan or Blower Expansion Joint

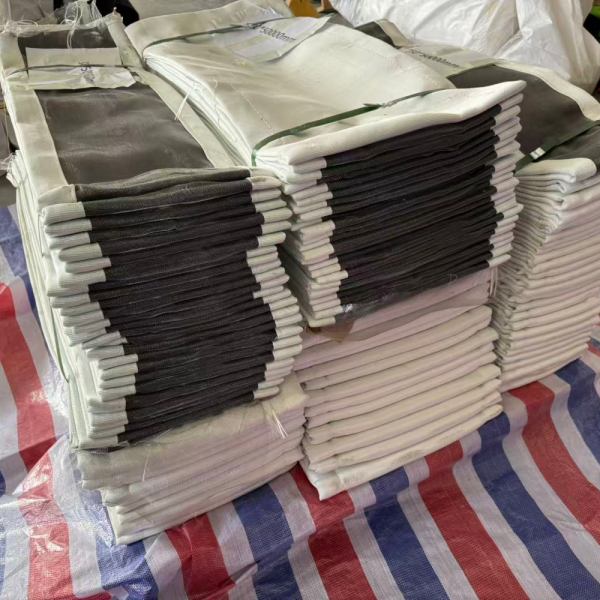

BSTFLEX supports drawing-based fabrication of flexible belts and application-specific duct assemblies. Our fabric expansion joint manufacturing capabilities include round, rectangular and custom configurations evaluated against the supplied operating conditions.

Send the inlet and outlet records, fan arrangement drawing, speed range, temperature, pressure, medium, movement requirements and requested delivery scope. Include photographs and service history for replacements, together with the quantity and required delivery date.

Review the custom non metallic fabric expansion joint product page for configuration options. The objective is a correctly specified connection at each side of the fan, not simply two pieces of flexible fabric with matching dimensions.
