Tadpole Gasket & High Temperature Tadpole Seal
BSTFLEX manufactures custom tadpole gaskets, tadpole seals and tadpole gasket tape for industrial ovens, furnaces, kilns, boilers, thermal enclosures, access panels and other high temperature sealing applications.
A tadpole gasket combines a compressible sealing bulb with an integrated mounting tail. The bulb creates the primary seal when compressed against the mating surface, while the flat tail provides a practical attachment area for installation on doors, frames, panels and industrial equipment.
Unlike standard gasket tape with a fixed material construction, BSTFLEX tadpole seals can be engineered using different cover materials, core materials, bulb sizes and tail configurations. This allows the gasket to be matched to the actual operating temperature, compression requirement, abrasion exposure, radiant heat, chemical environment and equipment geometry.
Custom Tadpole Gaskets by Cover Material and Core Type
The performance of a high temperature tadpole gasket depends on both the outer cover and the internal core. BSTFLEX manufactures multiple material combinations for different industrial sealing conditions.
|
Cover Material
|
Available Core Options
|
Typical Selection Consideration
|
|
Fiberglass Fabric
|
Fiberglass, Stainless Steel, Hollow Stainless Steel
|
General industrial oven, furnace and thermal door sealing
|
|
Silica Cloth
|
Ceramic Fiber, Inconel
|
Higher temperature thermal sealing applications
|
|
Ceramic Fabric
|
Ceramic Fiber, Inconel
|
Demanding furnace, kiln and thermal processing environments
|
|
Basalt Fabric
|
Wire Mesh
|
Thermal sealing requiring mineral-fiber cover and reinforced core
|
|
Aramid Fabric
|
Fiberglass
|
Applications requiring additional abrasion and mechanical durability
|
|
PTFE Coated Fiberglass
|
Fiberglass
|
Chemical-resistant and process-specific sealing environments
|
|
Silicone Coated Fiberglass
|
Custom Core Options
|
Flexible coated sealing surface for industrial equipment
|
|
Vermiculite Coated Fiberglass
|
Metal Mesh Core Options
|
Elevated-temperature furnace, oven, boiler and kiln sealing
|
|
Aluminized Fiberglass
|
Hollow or Reinforced Core Options
|
Applications involving significant radiant heat exposure
|
Fiberglass Tadpole Gaskets
Fiberglass is one of the most versatile cover materials for industrial tadpole seals. Different internal cores can be used to change the compression characteristics of the same basic gasket profile.
High Temperature Silica and Ceramic Tadpole Seals
For more demanding thermal environments, silica and ceramic textile covers can be combined with fiber or metallic cores according to the required temperature capability and compression behavior.
Coated and Specialty Tadpole Gaskets
Surface treatments and specialty textiles allow tadpole gasket construction to address requirements beyond temperature alone, including radiant heat, abrasion, chemical exposure and surface durability.
Where Are Tadpole Gaskets Used?
BSTFLEX tadpole gaskets are manufactured for industrial equipment requiring a flexible compression seal around doors, panels and access openings.
-
Industrial oven doors
-
Furnace doors and access panels
-
Kiln doors
-
Boiler access doors
-
Heat treatment equipment
-
Batch, drying and curing ovens
-
Powder coating ovens
-
Ducts and dampers
-
Thermal chambers
-
High temperature enclosures
-
Exhaust and plenum equipment
-
OEM thermal processing systems
How to Choose a Tadpole Gasket
The correct gasket should be selected according to the complete operating environment rather than temperature alone.
Consider the continuous temperature, peak temperature, sealing gap, required bulb compression, closing force, cover material, core construction, abrasion exposure, chemical environment and mounting method.

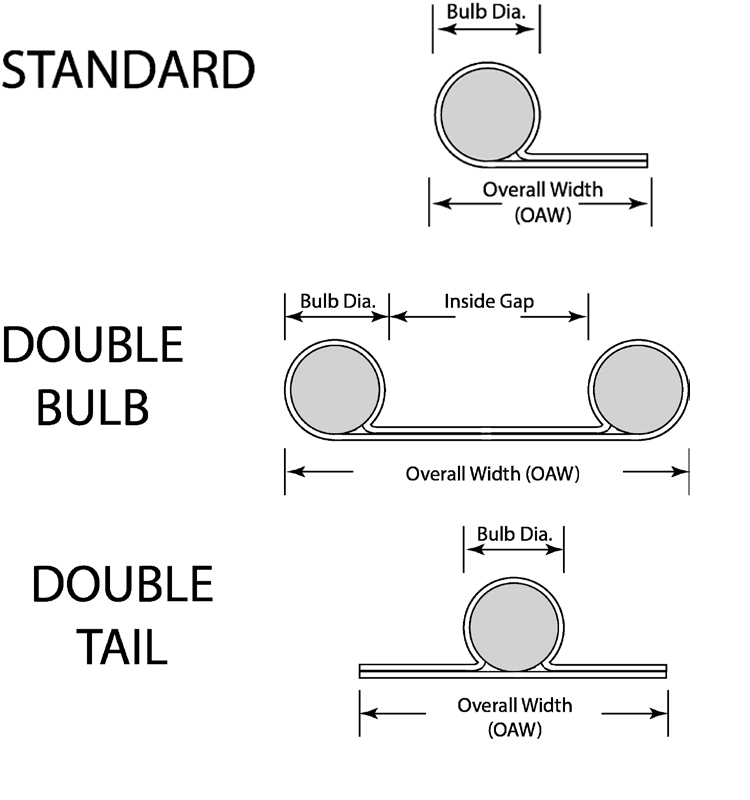

For replacement applications, provide the existing gasket cross section, bulb diameter, tail width and required length. A physical sample or equipment drawing can also be used for custom development.
Custom Tadpole Gasket Manufacturer
BSTFLEX can manufacture tadpole seals according to standard profiles or develop customized constructions for OEM and replacement applications.
Customization can include:
-
Cover material
-
Core material
-
Bulb diameter
-
Bulb construction
-
Tail width
-
Overall profile
-
Hollow or reinforced core
-
Surface coating or treatment
-
Cut length
-
Custom fabricated shapes
Send BSTFLEX your drawing, existing gasket sample, dimensions, operating temperature, application and required quantity for material selection, sample development and quotation.
-
Silica Cloth Covered Ceramic Core Tadpole Gasket
BSTFLEX silica cloth covered ceramic core tadpole gasket is a flexible high temperature sealing solution designed for furnace doors, industrial ovens, kilns and thermal processing equipment. The gasket features a rounded sealing bulb supported by a ceramic core and protected by a high temperature silica cloth cover. The extended tail provides a practical mounting section for mechanical attachment to doors, frames and access panels. The ceramic core provides heat-resistant structural support within the bulb, while the silica cloth cover forms the external thermal barrier. This construction is suitable for applications where a non-metallic core is preferred for high temperature sealing and thermal insulation. The ceramic core tadpole gasket can be manufactured in different bulb diameters, tail dimensions, lengths and configurations according to the equipment design. BSTFLEX provides custom tadpole gaskets, tadpole seals and tadpole gasket tape based on customer drawings, samples or dimensional requirements.
read more
-
High Temperature Tadpole Gasket with Silica Cloth Cover and Inconel Core
BSTFLEX high temperature tadpole gasket is a flexible bulb-and-tail sealing solution designed for demanding thermal applications. It features a high temperature silica cloth cover and an Inconel core that provides structural support to the sealing bulb. The rounded bulb is designed for compression against a mating surface, while the extended tail provides a convenient area for mechanical attachment. This silica tadpole gasket is suitable for furnace doors, industrial oven doors, kilns, heat treating equipment, thermal processing chambers, access panels and other high temperature enclosures. The gasket can be customized in bulb diameter, tail dimensions, core construction, length, shape and overall profile to match specific equipment requirements. Also known as a tadpole seal, tadpole tape or tadpole gasket tape, this product provides a flexible approach to high temperature door and panel sealing. BSTFLEX supports custom manufacturing based on drawings, dimensions or samples for OEM and industrial applications.
read more
-
Silicone Coated Fiberglass Tadpole Gasket
Silicone coated fiberglass tadpole gasket is a flexible thermal sealing product designed for oven doors, industrial equipment doors, dampers, removable panels, and enclosure joints. Made with a silicone coated fiberglass outer cover and fiberglass core, it combines sealing flexibility, surface conformity, and stable performance in moderate high temperature environments. It is suitable for irregular sealing surfaces and repeated open-close applications where standard flat tapes cannot provide enough compression or durability. Based on the reference product class, this construction is commonly positioned for service up to 500°F / 260°C.
read more
-
Aramid Cover Fiberglass Core Tadpole Gasket Tape
Aramid Cover Fiberglass Core Tadpole Gasket Tape is a high-performance sealing product designed for furnace doors, boiler doors, industrial ovens, kilns, and other high-temperature equipment. It features a durable aramid outer cover for improved abrasion resistance and a fiberglass core that provides flexibility, resilience, and thermal insulation. The tadpole profile combines a round bulb section for effective compression sealing with a flat tail for easy installation on metal frames and access doors. This structure helps reduce heat loss, control smoke or air leakage, and maintain reliable sealing performance in demanding industrial environments. It is an ideal choice for applications requiring both heat resistance and long service life.
read more
-
Vermiculite Coated Fiberglass Tadpole Gasket Tape
The Vermiculite Coated Fiberglass Tadpole Gasket Tape with Inconel or Stainless Steel Mesh Core is a high-temperature sealing solution designed for demanding industrial environments such as furnaces, boilers, ovens, and kilns. This gasket features a vermiculite coated fiberglass outer layer that provides excellent resistance to extreme heat, abrasion, and thermal degradation. The bulb section of the gasket is reinforced with an Inconel wire mesh core or stainless steel mesh core, giving the seal superior compression strength and long service life under repeated door closing and high-temperature cycling. The tadpole shape design includes a round bulb head for effective sealing and a flat tail for easy attachment to furnace doors or metal flanges. This structure allows the gasket to maintain consistent sealing performance while accommodating thermal expansion and mechanical movement. With outstanding heat resistance, flexibility, and durability, vermiculite coated fiberglass tadpole gasket tape is widely used for industrial furnace doors, boiler access panels, oven doors, and other high-temperature sealing applications where reliable thermal insulation and gas sealing are required.
read more
